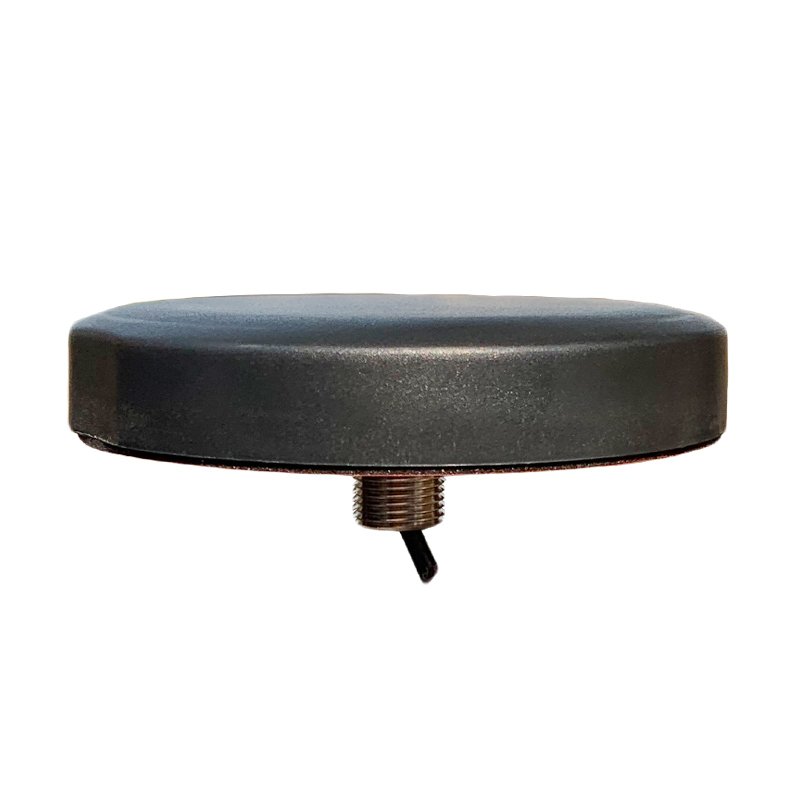

MRTK-Q7027-03S, LTE Antenna, 3dBi, SMA/Male,3m RG174
| The Cellular/LTE, WIFI, ISM Screw Mount Antenna is a high-performance antenna ideal for powerful | |
| global connection on the move. This antenna outperforms any competitor by offering 4G, LTE, 2G, | |
| 3G, WiFi, Bluetooth standards. Designed with an omni-directional radiation pattern | |
| For external applications, the production material used is ABS stable, protecting the antenna from | |
| temperatures between -40C and +80C,Durable ABS housing, thread and nut is resistant to vandalism | |
| and direct attack. | |
| The cables on the antenna have a SMA-Male standard connector, 300cm standard cable length and are | |
| fully customizable by offering additional connector types, cable lengths and cable types． |
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 3dBi |
| V.S.W.R | ≤1.8 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Cable Type | RG174 |
| Cable Length | 3M |
| Antenna Radome Material | ABS |
| Mount way | Sticker |
| Mechanical | |
| Dimensions | Φ80x15mm |
| Weight | 60g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 3dBi |
