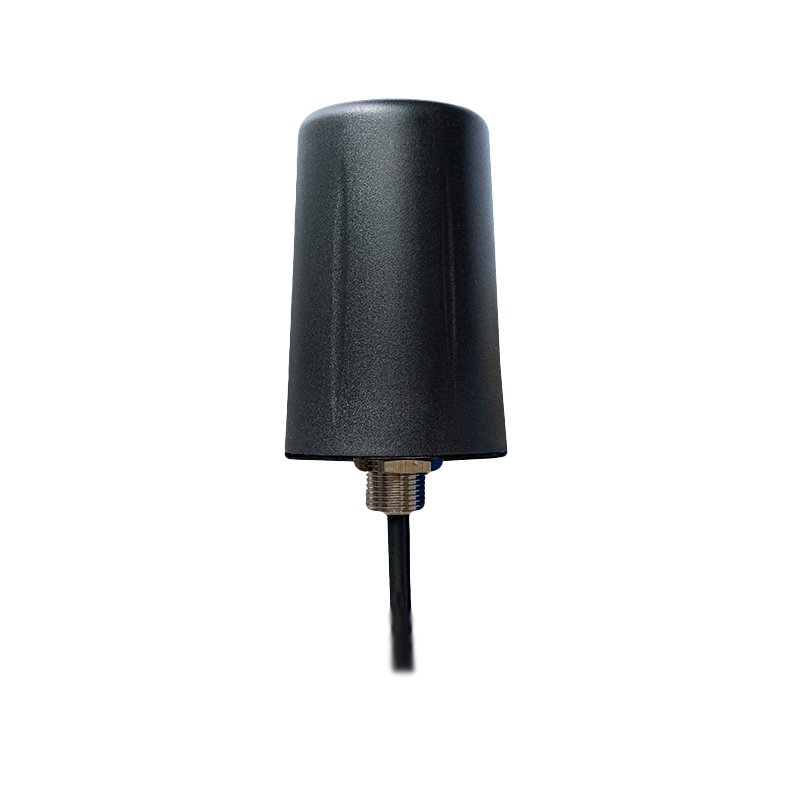

MRTK-Q7027-DL, LTE Antenna, 3dBi, SMA/Male,3m RG174
| LTE terminal antennas AC-Q7027-DL complement Mobile LTE broad line of antenna products for | |
| Cellular applications. | |
| Antenna with performance of 3 & 5 dBi max(frequency dependent). | |
| A ground plane is required to maximize gain. | |
| The antenna radome consists of black ASA UV resistant plastic, with a heavy duty metal | |
| baseand threaded feed thru. | |
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 3dBi |
| V.S.W.R | ≤2.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Cable Type | RG58U |
| Cable Length | 3M |
| Antenna Radome Material | ABS |
| Mount way | Screw |
| Mechanical | |
| Dimensions | Φ48x82mm |
| Weight | 160g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 3dBi |
