MRTK-Q7027-L20D, LTE /4G Anten, SMA/Erkek , 5dBi , 90-180°
Fiyat
4,90 USD + KDV
168,54 TL + KDV

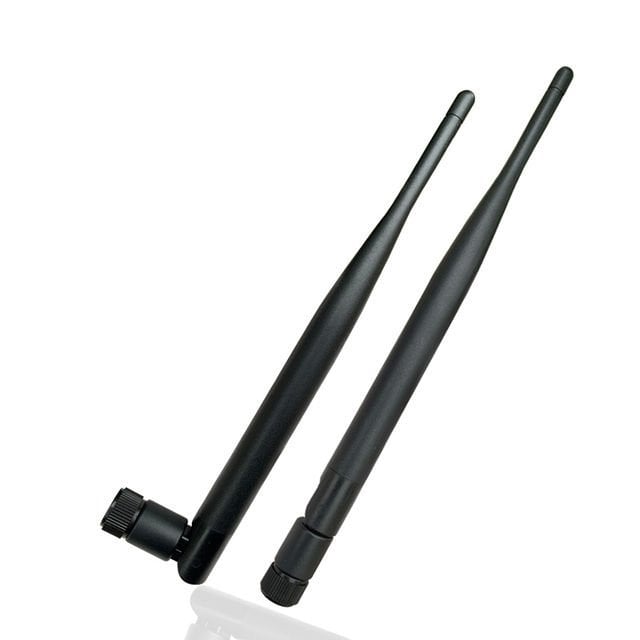

| The 4G Whip Antenna is vertically polarized with an omnidirectional radiation pattern. | |
| These antennas are intended for demonstration use or short range communications only. | |
| It does not require a ground-plane to connect to. | |
| It has a quality TPE housing for use with 4G/LTE terminals. | |
| Linear polarized antenna can be made very small and light weight, especially useful for weight-critical | |
| application.It can be used straight or hinged 90 degrees. | |
| The antenna has a wide-band response and can also be used for other cellular and wireless | |
| applications such as GSM, LTE, UMTS, and WI-FI. |
| Electrical | |
| Frequency Range | 698-960/1710-2170/2500-2700MHz |
| Gain | 5dBi |
| V.S.W.R | ≤2.5:1 |
| Radiation | Omni-direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | SMA Male/RP SMA Male |
| Antenna Radome Material | TPEE |
| Mechanical | |
| Dimensions | Φ13x197mm |
| Weight | 35g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 5dBi |
