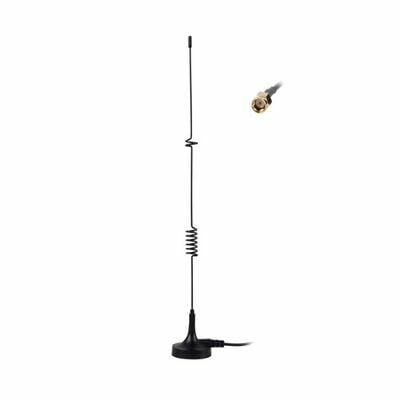

MRTK-Q7027I313, 4G , LTE /4G Anten , 5dBi , SMA/Erkek , RG174 Kablo
This antenna deliversstable high omni-directional gain and across all 2G(GSM),3G and 4G(LTE),cellular bands from 700MHzto 2.7GHz.
This high performing antenna can be used for all cellulardevices and will not requirechanging antennas when deploying from country to country or technology to technology like CDMA
to GSM or 3G to 4G.
Being magnetic mount it is designed to be mounted on a ground plane for optimal performance We recommends using the antennawith 2 or 3m cable length or less and can providecustomized connectors and cable lengthsupon customer requirements
Electrical |
|
Frequency Range |
698-960/1710-2700MHz |
Gain |
5dBi |
V.S.W.R |
≤2.0 |
Radiation |
Omni-Direction |
Polarization |
Vertical |
Maximum Input Power |
50W |
Impedance |
50Ώ |
Connector |
SMA Male |
Cable Type |
RG174 |
Cable Length |
3M |
Antenna Radome Material |
Aluminum |
Mounting way |
Magnetic Mount |
Mechanical |
|
Dimensions |
Φ45x315mm |
Weight |
130g |
Operating Temperature |
-40℃ to+70℃ |
RoHS Compliant |
YES |
Kazanç | : | 5dBi |
