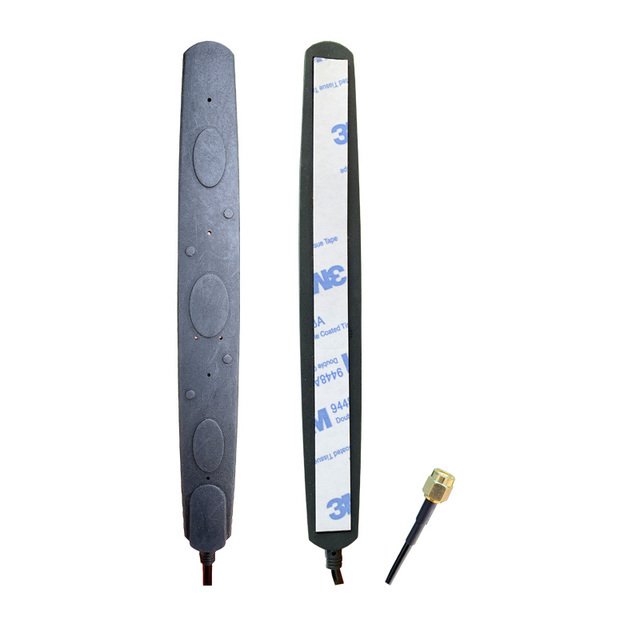

MRTK-Q7027M07, LTE Antenna, 3dBi, SMA/Male, 3m RG174
The MRTK-Q7027M07 antenna delivers stable high omni-directional gain and across all 2G(GSM),3G and 4G(LTE),cellular bands from 700MHz to 2.7GHz.This high performing antenna can be used for all cellular devices and will not require changing antennas when deploying from country to country or technology to technology like CDMA to GSM or 3G to 4G.Being Sticker mount it is designed to be mounted on a ground plane for optimal performance
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 3dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Cable Type | RG174 |
| Cable Length | 3M |
| Antenna Radome Material | PVC |
| Mount way | Sticker |
| Mechanical | |
| Dimensions | 161x20mm |
| Weight | 53g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 3dBi |
