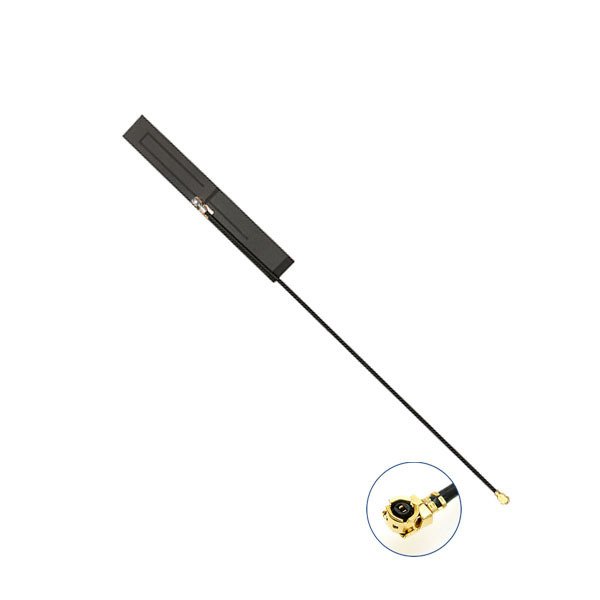

MRTK-Q7027N24, LTE PCB Antenna, 3dBi, IPEX,10cm 1.13 cable
| All band frequency from 800-2700MHz.Includes all cellular, wi-fi, ISM and GNSS bands | |
| Antenna is flexible and robust. | |
| Its slim-line design allows for covert and convenient installation in the device, its omni-directional gain | |
| across all bands ensures constant reception and transmission. | |
| It is a high gain, high efficiency solution which Built-in grounding, no need to add grounding | |
| antenna cables and connectors are fully customizable. |
| Electrical | |
| fully customizable. | 824-960/1710-2700MHz |
| Gain | 2.5/3dBi |
| V.S.W.R | ≤3.0 |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | IPEX |
| Cable Type | 1.13cable |
| Cable Length | 10cm |
| Antenna Radome Material | FPC |
| Mechanical | |
| Dimensions | 60x7x0.1mm |
| Weight | 8g |
| Operating Temperature | -40℃ to+70℃ |
| Humidity | +15-70%RH |
| RoHS Compliant | YES |
| Kazanç | : | 3dBi |
