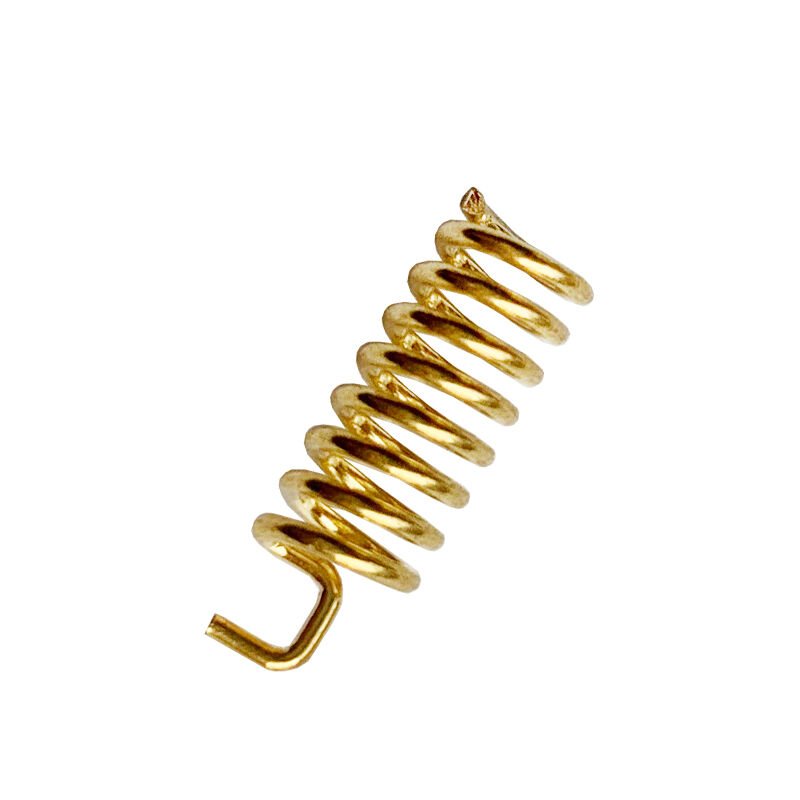

MRTK-Q868-ML, 868MHz Spring Helical Anten, 2.15dBi
Fiyat
3,00 USD + KDV
103,48 TL + KDV
Simple Spring Antenna 868MHz Antenna Helical For Remote Network Accessories, Modules, | |
Or Other Smart Devices. | |
This is a 868 MHz Coil Antenna Boost Waves Antenna Long-range Antenna Embedded Spring Antenna | |
with 50 Ω and 2.15dBi RF 868mhz range. | |
Very low cost Compact for physical concealment Precision-wound coil Rugged phosphor-bronze | |
construction Mounts directly to the PCB Can be customized according to customer requirements | |
Precise size is the characteristics of this antenna |
Electrical | |
Frequency Range | 868MHz |
Gain | 2.15dBi |
V.S.W.R | ≤2.0 |
Polarization | Vertical |
Maximum Input Power | 5W |
Impedance | 50Ώ |
Antenna Radome Material | Copper |
Mount way | Solder |
Mechanical | |
Dimensions | Φ5.5x13mm |
Weight | <1g |
Operating Temperature | -40℃ to+70℃ |
RoHS Compliant | YES |
Kazanç | : | 2.15dBi |
Bu ürüne ilk yorumu siz yapın!
