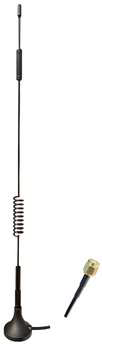

MRTK-Q868I28, 7Dbi, 3metre RG174 kablo , SMA Erkek
Fiyat
7,00 USD + KDV
239,68 TL + KDV
Get the convenience of a versatile antenna that can be utilized throughout your enterprise, from
the warehouse floor and production line to outside the dock door. Able to withstand extreme heat and cold as well as moisture and vibration,this antenna is ideal for
nearly any application, including retail, manufacturing,healthcare，wholesale distribution, government and more.
This high performing antenna can be used for all cellular devices and will not require changing antennas
when deploying from country to country or technology to technology like CDMA to GSM or 3G to 4G.
Being magnetic mount it is designed to be mounted on a ground plane for optimal performance
We recommends using the antenna with 2 or 3m cable length or less and can provide customized
connectors and cable lengths upon customer requirements
| Electrical | |
| Operating Frequency | 868 MHz |
| Bandwidth | ±3MHz |
| Gain | 7dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Cable Type | RG174 |
| Cable Length | 3M |
| Connector Type | SMA Male(can be customization) |
| Antenna Radome Material |
Aluminum
|
| Mechanical | |
| Dimensions | Φ45x320mm |
| Weight | 80g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 7dBi |
