Kategori
OLED , LCD
Marka
Stok Kodu
PE412DEHRJ

Raspberry Pi OLED/LCD HAT, Onboard 2inch IPS LCD Main Screen and Dual 0.96inch Blue OLED Secondary Screens

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
Raspberry Pi OLED/LCD HAT, Onboard 2inch IPS LCD Main Screen And Dual 0.96inch Blue OLED Secondary Screens, With 40PIN GPIO Header, Compatible With Raspberry Pi Series Boards

Dual 0.96inch OLED Secondary Screens

Using I2C Communication, Blue Display Color, Can Be Used To Display Key Information,
Status Indicator Messages Or Small Graphics

Features At A Glance
  • Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
  • 2inch IPS LCD Main Screen with built in ST7789VW driver chip, SPI interface communication, wide viewing angle, supports 262K color display, 240×320 resolution
  • Dual 0.96inch OLED secondary screens with built in SSD1315 driver chip, I2C interface communication, blue display color, 128×64 resolution, can be used to display key informations, status indicator messages or small graphics
  • Onboard 4x user-defined keys for extended applications
  • Comes with online development resources and manual (Raspberry Pi/VisionFive2/Arduino/STM32, etc.)
Onboard 4x User-Defined Keys

Supports Customizing The Key Function, Easy To Use

Application Scenarios

Pin Definition

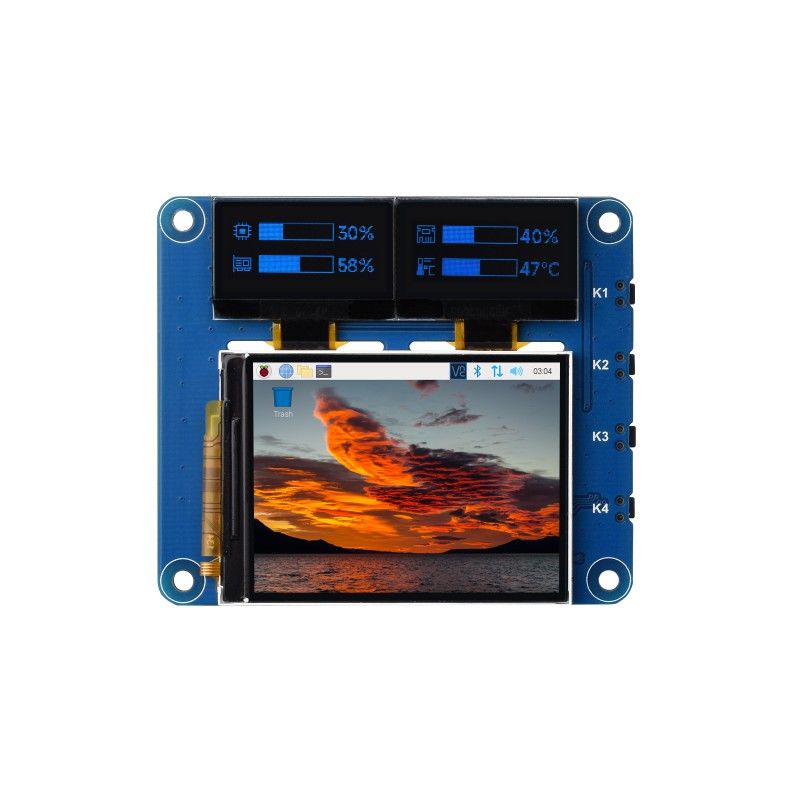

Product Show
Outline Dimensions
Ekran Boyutu : 0.96 inch
Bu ürüne ilk yorumu siz yapın!
Raspberry Pi OLED/LCD HAT, Onboard 2inch IPS LCD Main Screen and Dual 0.96inch Blue OLED Secondary Screens PE412DEHRJ
Raspberry Pi OLED/LCD HAT, Onboard 2inch IPS LCD Main Screen and Dual 0.96inch Blue OLED Secondary Screens
