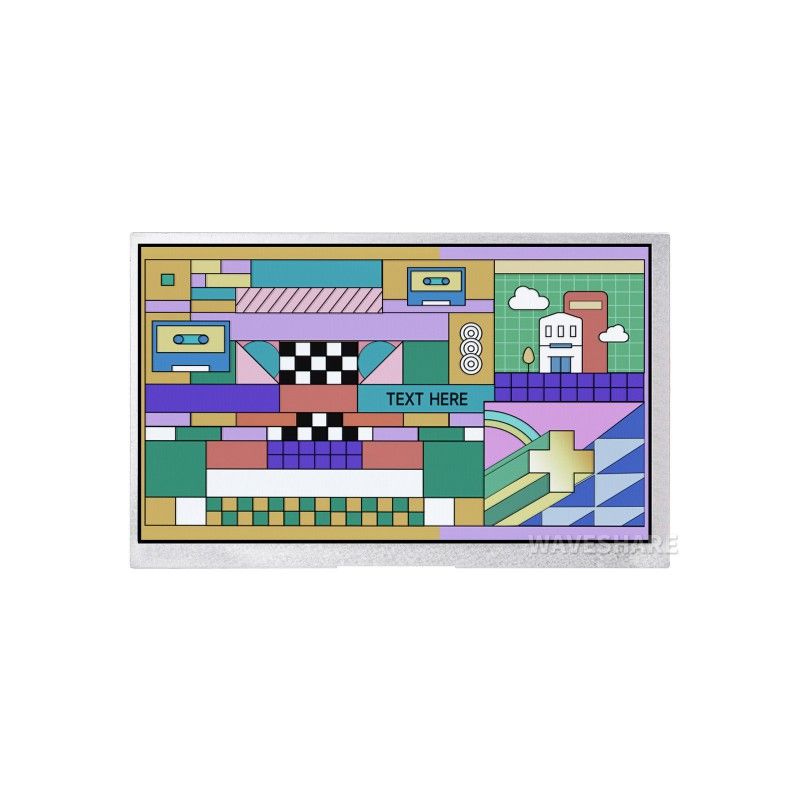

7/10.1 inch DVI Display Module for Raspberry Pi Pico, IPS panel, 1024×600 Pixel, DVI interface Communication

7/10.1 inch DVI Display Module for Raspberry Pi Pico, IPS panel, 1024×600 Pixel, DVI interface Communication

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
ÜRÜN BİLGİSİ
7/10.1 Inch DVI Display Module For Raspberry Pi Pico, IPS Panel, 1024×600 Pixel, DVI Interface Communication
7/10.1 Inch DVI Display Module For Pico

Comes with Raspberry Pi Pico C/C++ demo and resources



                                      • Size7/10.1"
                          • Resolution1024×600
                          • Display PanelIPS
                          • Viewing Angle170°
                          • InterfaceDVI
                          • OSD MenuBrightness/Contrast

Features At A Glance
                          • Adopts IPS panel, 1024×600 resolution*, with 170° viewing angle
                          • Adopts DVI interface for higher communication speed
                          • Based on the Raspberry Pi Pico with onboard 40PIN header
                          • Built in OSD menu for brightness/contrast adjustment
                          • Available in 7inch and 10.1inch display sizes
                          • Suitable for advertisement picture display and other application scenarios
                          • Comes with online development resources and manual (examples for Raspberry Pi Pico C/C++)

*Due to the memory limitation of RP2040, the picture resolution (Max) will be 400×240 if the color format is RGB565.


Version Options

7inch



10.1inch

Specifications
OPERATING VOLTAGE 5V
RESOLUTION 1024×600 pixels
COMMUNICATION INTERFACE DVI
DISPLAY PANEL IPS
DISPLAY SIZE 7inch: 154.21×85.92mm
10.1inch: 222.72×125.28mm
PIXEL SIZE 7inch: 0.1506×0.1432mm
10.1inch: 0.2175×0.2088mm


Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Connect to Raspberry Pi Pico WH



Connect to RP2040-Plus

for reference only, the Pico and RP2040-Plus are NOT included


Pin Definition

Interface Introduction

Product Show
Outline Dimensions
