1.3inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 240×240, SPI

1.3inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 240×240, SPI

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
ÜRÜN BİLGİSİ

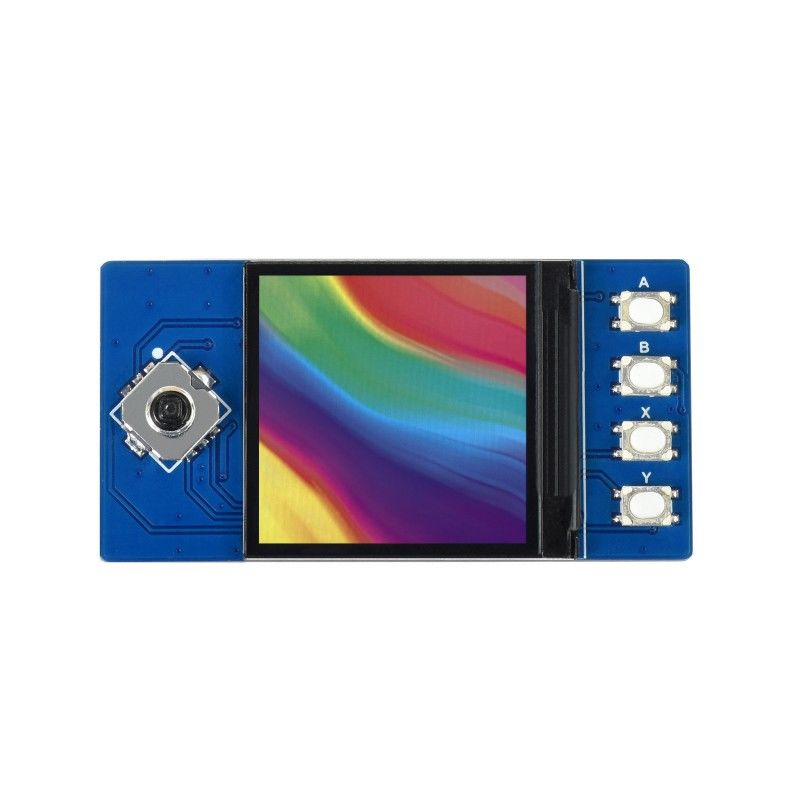

1.3inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 240×240 Pixels, SPI Interface
1.3" LCD Display Module For Pico

Embedded ST7789 Driver, Using SPI Bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo


    • Size1.3"
      •
    • Resolution240×240
      •
    • Display Color65K RGB

  • InterfaceSPI
    •
  • Display PanelIPS
    •
  • DriverST7789
Features At A Glance
                                • 240×240 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
                                • SPI interface, requires minimal IO pins
                                • 1x joystick and 4x user buttons for easy interacting
                                • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGE 2.6 ~ 5.5V RESOLUTION 240×240 pixels
COMMUNICATION INTERFACE 4-wire SPI DISPLAY SIZE 23.40 × 23.40mm
DISPLAY PANEL IPS PIXEL SIZE 0.0975 × 0.0975mm
DRIVER ST7789 DIMENSIONS 52.00 × 26.50mm
Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
1x Joystick And 4x User Buttons For Easy Interacting

Raspberry Pi Pico is NOT included.
Pinout Definition
Outline Dimensions
Ekran Boyutu : 1.3 inch
