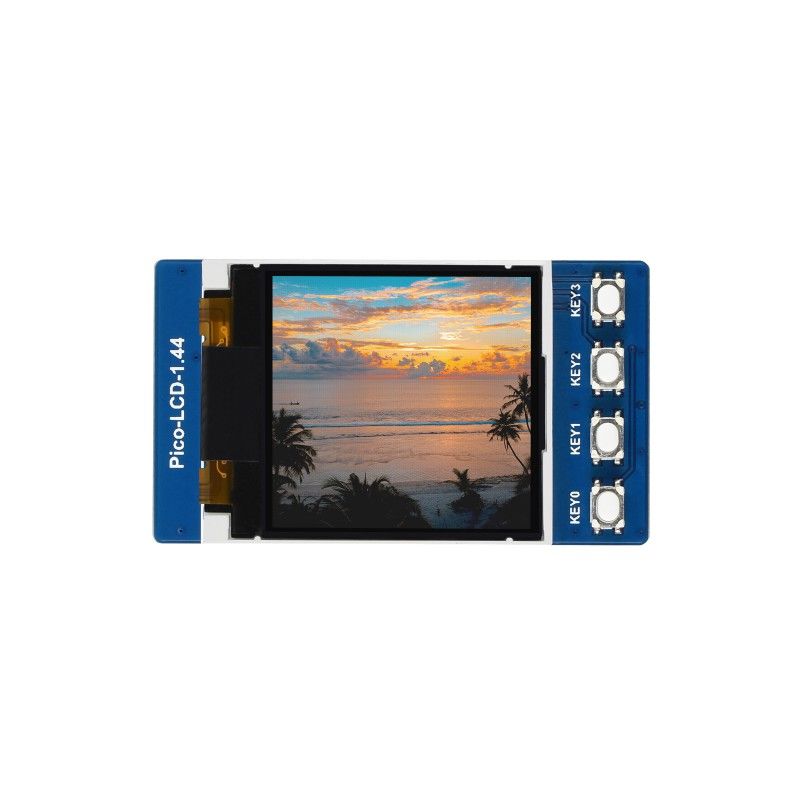

1.44inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 128×128 Pixels, SPI Interface
1.44" LCD Display Module For Pico
Embedded ST7735S Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

Features At A Glance
- 128×128 resolution, 65K RGB colors, clear and colorful displaying effect
- SPI interface, requires minimal IO pins
- 4x user buttons for easy interacting
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGE | 3.15V ~ 5V | RESOLUTION | 128×128 pixels |
---|---|---|---|
COMMUNICATION INTERFACE | 4-wire SPI | DISPLAY SIZE | 25.50 × 26.50 mm |
DISPLAY PANEL | TFT | PIXEL SIZE | 0.20 × 0.20 mm |
DRIVER | ST7735S | DIMENSIONS | 52.0 × 30.0 mm |
Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
4x User Buttons For Easy Interacting

Raspberry Pi Pico is NOT included.
Pinout Definition

Outline Dimensions

Ekran Boyutu | : | 1.44 inch |
