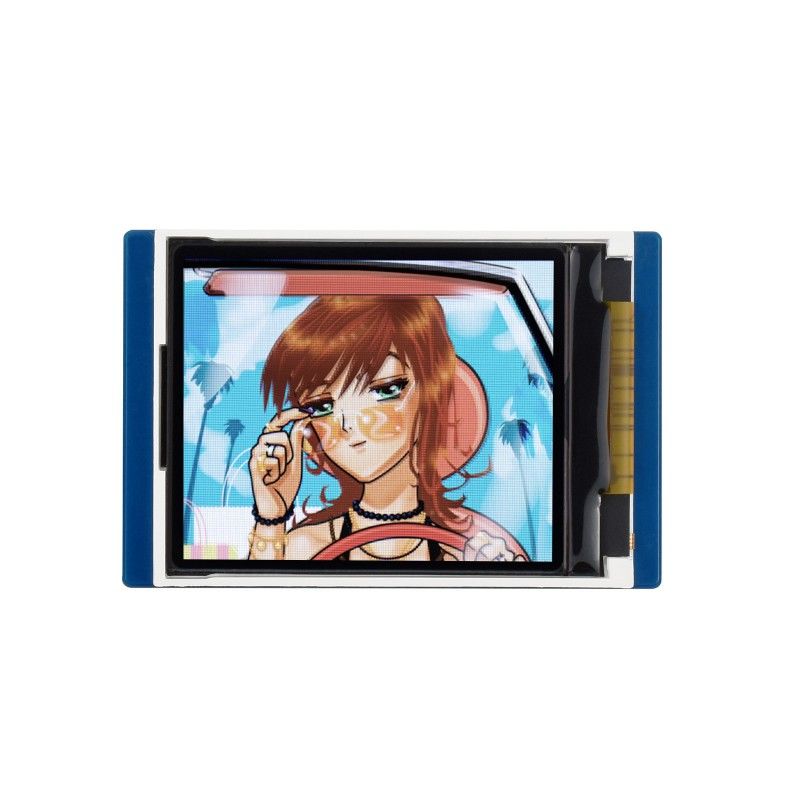

1.8inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 160×128 Pixels, SPI Interface
1.8" LCD Display Module For Pico
Embedded ST7735S Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
Features At A Glance
- 160×128 resolution, 65K RGB colors, clear and colorful displaying effect
- SPI interface, requires minimal IO pins
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| OPERATING VOLTAGE | 2.6 ~ 5.5V | RESOLUTION | 160×128 pixels |
|---|---|---|---|
| COMMUNICATION INTERFACE | 4-wire SPI | DISPLAY SIZE | 35.04 × 28.03 mm |
| DISPLAY PANEL | TFT | PIXEL SIZE | 0.219 × 0.219 mm |
| DRIVER | ST7735S | DIMENSIONS | 52.0 × 34.5 mm |
Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Raspberry Pi Pico is NOT included.
Pinout Definition
Outline Dimensions
| Ekran Boyutu | : | 1.8 inch |
