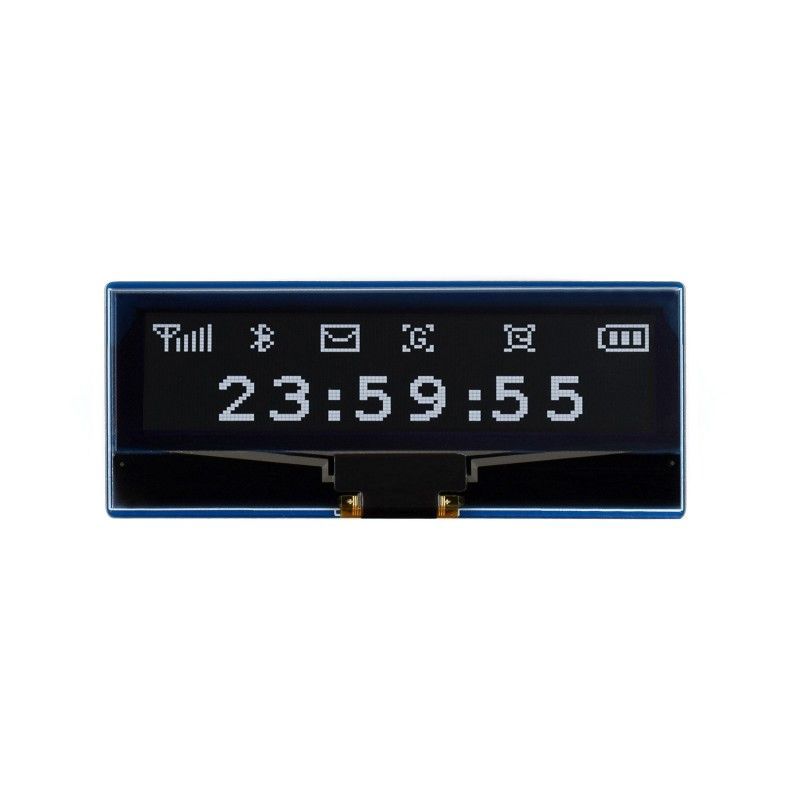

2.23inch OLED Display Module For Raspberry Pi Pico, 128×32 Pixels, SPI/I2C Interface
2.23" OLED Display Module For Pico
Embedded SSD1305 Driver, Using SPI/I2C Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
Features At A Glance
- Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
LOGICAL VOLTAGE | 3.3V | VIEWING ANGLE | >160° |
---|---|---|---|
OPERATING VOLTAGE | 3.3V/5V | RESOLUTION | 128×32 pixels |
COMMUNICATION INTERFACE | 4-wire SPI, I2C | DISPLAY SIZE | 55.02 × 13.10mm |
DISPLAY PANEL | OLED | PIXEL SIZE | 0.41 × 0.39mm |
DRIVER | SSD1305 | DIMENSIONS | 63.00 × 26.00mm |
Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Raspberry Pi Pico is NOT included.
Pinout Definition
Outline Dimensions
Ekran Boyutu | : | 2.23 inch |
