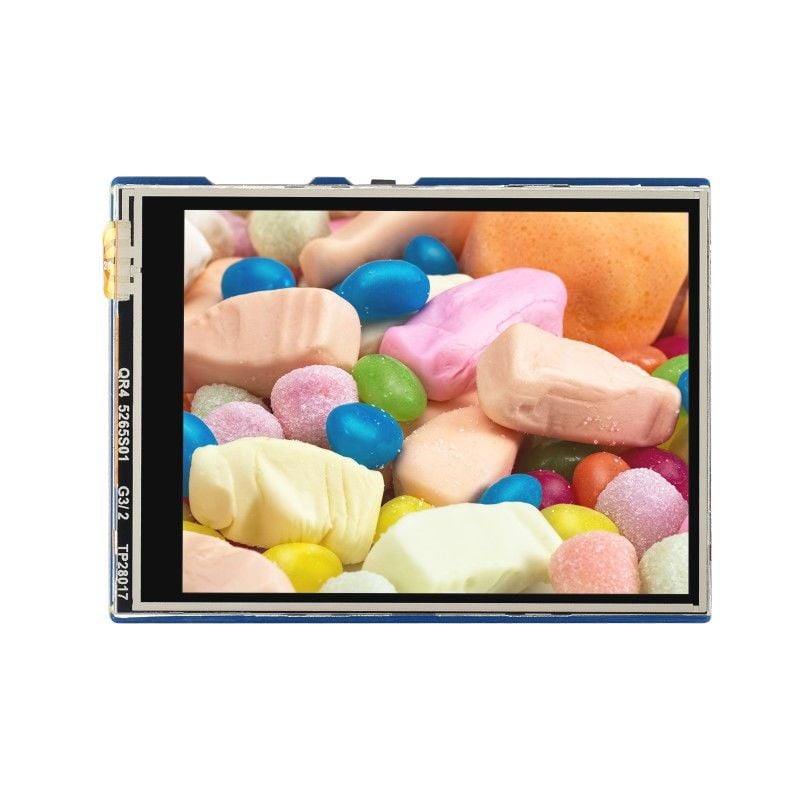

2.8inch Touch Display Module for Raspberry Pi Pico, 262K Colors, 320×240, SPI

2.8inch Touch Display Module for Raspberry Pi Pico, 262K Colors, 320×240, SPI

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
ÜRÜN BİLGİSİ
2.8inch Touch Display Module For Raspberry Pi Pico, 262K Colors, 320×240 Pixels, SPI Interface
2.8" Touch Display Module For Pico

Resistive Touch Controller XPT2046, ST7789 Driver, Using SPI Bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo


    • Size2.8"
      •
    • Resolution320×240
      •
    • Display Color262K Colors
      •
    • Display PanelIPS

  • Touch TypeResistive
    •
  • InterfaceSPI
    •
  • Driver/ControllerST7789/XPT2046
Features At A Glance
                                  • 320×240 resolution, IPS screen, 262K colors, clear and colorful displaying effect
                                  • Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
                                  • MicroSD card slot for storing images and direct displaying them easily
                                  • Programmable backlight control, power saving
                                  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGE 5V RESOLUTION 320×240 pixels
COMMUNICATION INTERFACE SPI DISPLAY SIZE 57.60 × 43.20 mm
DISPLAY PANEL IPS PIXEL SIZE 0.18 × 0.18 mm
DRIVER ST7789 DIMENSIONS 70.20 × 50.20 mm
TOUCH CONTROLLER XPT2046
Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Raspberry Pi Pico is NOT included.
What's On Board
  1. Rapsberry Pi Pico header
  2. MicroSD card slot

  1. XPT2046
    resistive touch controller
  2. RT9193-33
    3.3V linear voltage regulator
  3. Pico reset button
Pinout Definition
Outline Dimensions
Ekran Boyutu : 2.8 inch
