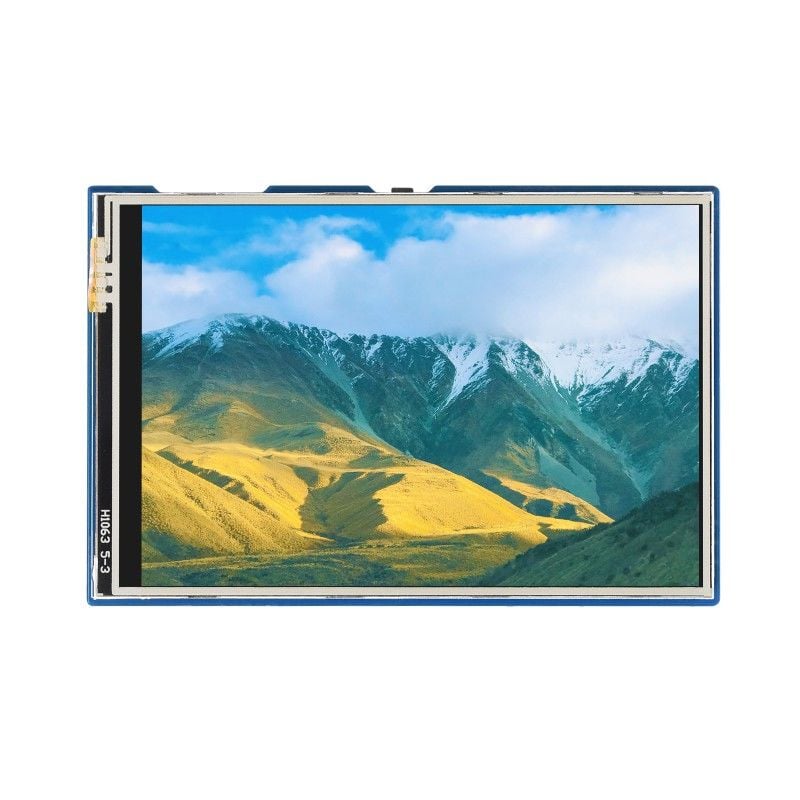

3.5inch Touch Display Module For Raspberry Pi Pico, 65K Colors, 480×320 Pixels, SPI Interface
3.5" Touch Display Module For Pico
Resistive Touch Controller XPT2046, ILI9488 Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
Features At A Glance
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- 480×320 resolution, IPS screen, 65K colors, clear and colorful displaying effect
- Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
- MicroSD card slot for storing images and direct displaying them easily
- Programmable backlight control, power saving
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Specifications
| OPERATING VOLTAGE | 5V | RESOLUTION | 480×320 pixels |
|---|---|---|---|
| COMMUNICATION INTERFACE | SPI | DISPLAY SIZE | 73.44 × 48.96 mm |
| DISPLAY PANEL | IPS | PIXEL SIZE | 0.153 × 0.153 mm |
| DRIVER | ILI9488 | DIMENSIONS | 86.00 × 57.20 mm |
| TOUCH CONTROLLER | XPT2046 |
Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Raspberry Pi Pico is NOT included.
What's On Board
- Rapsberry Pi Pico header
- CAT6219
LCD backlight power chip - RT9193-33
3.3V linear voltage regulator - Pico reset button
- MicroSD card slot
- XPT2046
resistive touch controller - 74HC4040
counter chip, for clock frequency division - 74HC04D
inverter chip - 74HC4094
serial data to parallel data converter
Pinout Definition
Outline Dimensions
| Ekran Boyutu | : | 3.5 inch |
