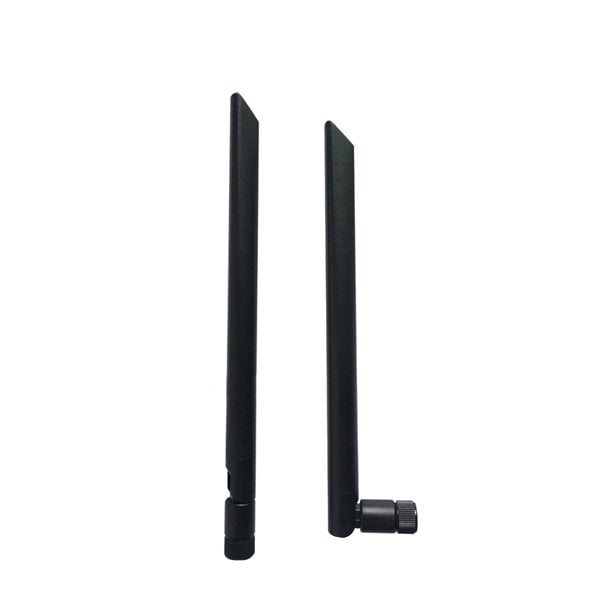

The 2.4g Blade Dipole Antenna is a compact antenna with high peak gain,high efficiency and cost | |
effective.Covers all common wifi bands,Tilt / Swivel Joint for optimum positioning | |
The antenna blade itself is only 20cm long .No tuning or ground plane are required. | |
The Blade Dipole Antenna greatly reduces the risk of implementation, making it a true plug and | |
go solution. | |
The antenna is well suited for use with both plastic and metal enclosures, and its affordable price | |
point, small size and modern design offers customers a low profile option for a more aesthetically | |
pleasing product. |
Electrical | |
Frequency Range | 2400-2483MHz |
Band width | 83MHz |
Gain | 5dBi |
V.S.W.R | ≤1.8 |
Radiation | Omni-Direction |
Polarization | Vertical |
Maximum Input Power | 5W |
Impedance | 50Ώ |
Connector | SMA Male |
Antenna Radome Material | TPEE |
Mechanical | |
Dimensions | Φ13x200mm |
Weight | 21g |
Operating Temperature | -40℃ to+70℃ |
RoHS Compliant | YES |
Kazanç | : | 5dBi |
