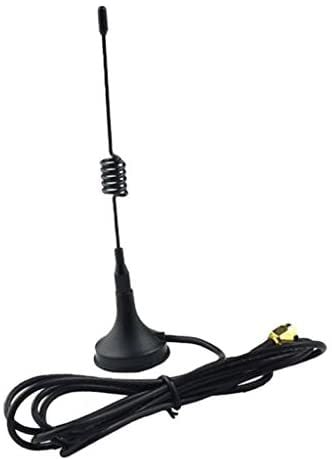

2.4G Magnetic wireless band antenna delivers marked improvements in efficiency and gain across | |
all common frequencies (2400-2483MHz) in use for WIFI and Wireless bands. | |
Small enough to be used indoors and outdoors, the antenna performance has been designed to take | |
advantage of any metal plate (ground-plane) it attaches to deliver best of class performance. |
Electrical | |
Frequency Range | 2400-2483MHz |
Band width | 83MHz |
Gain | 3dBi |
V.S.W.R | ≤2.0 |
Radiation | Omni-Direction |
Polarization | Vertical |
Maximum Input Power | 50W |
Impedance | 50Ώ |
Connector | SMA Male(can be customization) |
Cable Type | RG174 |
Cable Length | 3M |
Antenna Radome Material | Steel |
Mount way | Magnetic |
Mechanical | |
Dimensions | Φ29x175mm |
Weight | 45g |
Operating Temperature | -40℃ to+70℃ |
RoHS Compliant | YES |
Kazanç | : | 3dBi |
