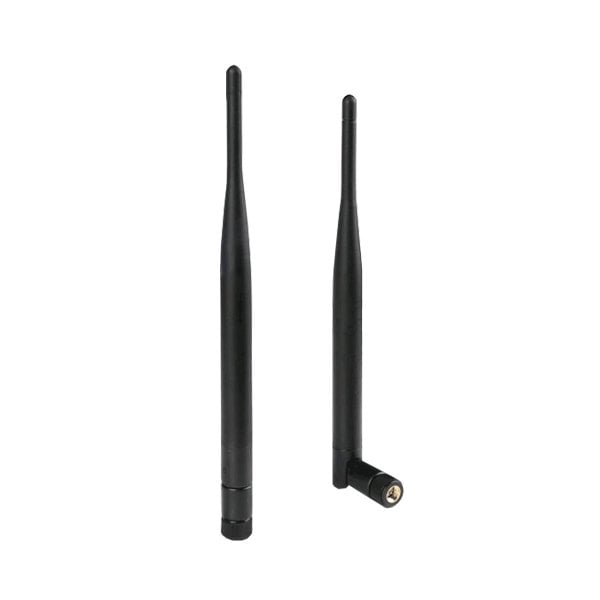

| This is a tough antenna for outdoor or indoor applications.Measuring is 197mm tall. | |
| UHF antenna’s revolutionary design features vertical polarization components. | |
| This antenna have low visibility, wide bandwidth and a low angle radiation pattern that | |
| superior to traditional gain antennas in most applications. | |
| This technology is beneficial when high performance is desired and extreme ruggedness and | |
| low profile is required. |
| Electrical | |
| Frequency Range | 433MHz |
| Band width | ±3MHz |
| Gain | 3dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | RP SMA Male |
| Antenna Radome Material | TPEE |
| Mechanical | |
| Antenna Dimension | Φ13x197mm |
| Weight | 22g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 3dBi |
