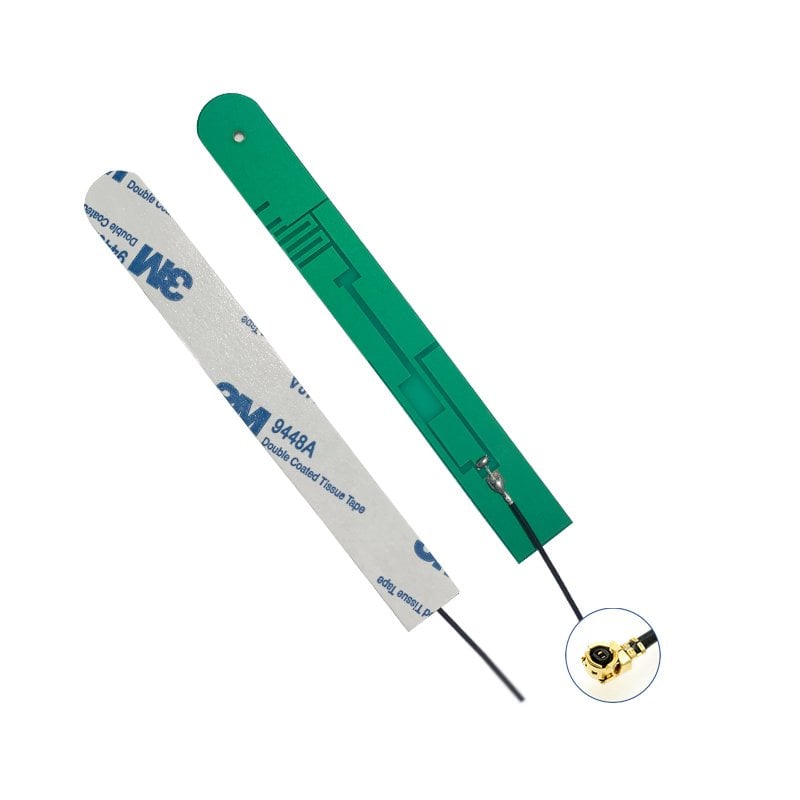

MRTK-Q6027N11214G, LTE PCB Antenna, 3dBi, IPEX,10cm 1.13 cable
| This is a LTE Internal PCB antenna based on multi-band, groundplane independent design optimised | |
| for 2G, 3G, and 4G/LTE frequencies. | |
| With compact dimensions of 110x14mm (length by width) and thickness of 2mm, it is typically used | |
| internally in a communications product such as an access device, router or fixed or mobile terminal. | |
| Supporting worldwide 4G/LTE frequency bands including 700 MHz for North America and | |
| 800/2600 MHz for Europe, it is a versatile solution for wireless products. | |
| Typical applications include:Autonomous/UAVs - Smart Metering - Connected Health Wearable Technologies | |
| - Payment Terminals | |
| Direct mount, 'on-board' antennas save on labor, cable and connector costs, lead to higher integration | |
| yield rates and reduce losses in transmission. | |
| Electrical | |
| Frequency Range | 600-960/1710-2700MHz |
| Gain | 3dBi |
| V.S.W.R | ≤2.5 |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | IPEX |
| Cable Type | 1.13 |
| Cable Length | 10cm |
| Antenna Radome Material | PCB |
| Mechanical | |
| Dimensions | 112x14x2mm |
| Weight | 3g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 3dBi |
