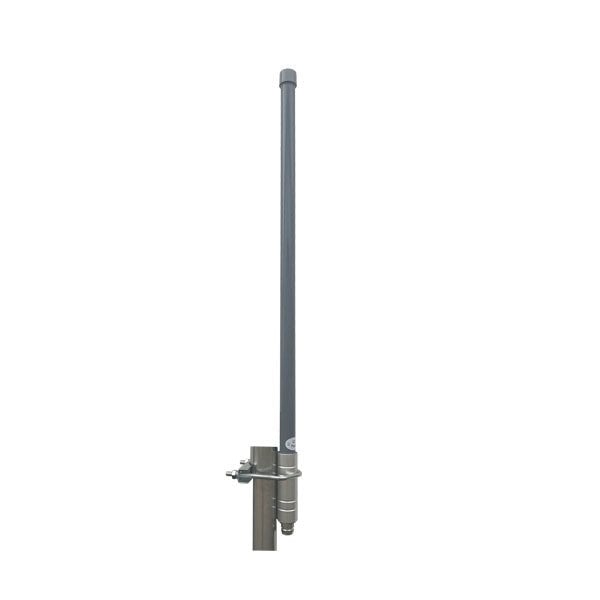

| This antenna is ideal for downtown urban settings, RV’s or marine installations. | |
| It’s built with a strong fiberglass casing and is designed to cover 2G/3G/4Gand WLAN systems for | |
| Cellular, PCS, AWS and LTE frequencies. | |
| This Full Band Fiberglass antenna is an omni-directional antenna that gathers signals from all sides | |
| and does not need to be pointed toward a cellular tower. | |
| Parts includes mounting equipment for either a flat horizontal surface or a wall. | |
| It shall be mounted in an upright position for best results. |
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 6/8dBi |
| V.S.W.R | 1.5:1 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 16° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | Fiberglass |
| Mount way | Pole |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Φ20x600mm |
| Weight | 300g |
| Operating Temperature | -40℃ to+70℃ |
| Rated wind velocity(m/s) | 60m/s |
| RoHS Compliant | YES |
| Kazanç | : | 8dBi |
