Kategori
Stok Kodu
MRTK-Q7027I01

MRTK-Q7027I01, LTE / 4G Anten ,5dBi, SMA/Erkek

Fiyat
5,25 USD + KDV
183,67 TL + KDV
Seçenekler
Kablo Boyu
Aynı Gün Kargo

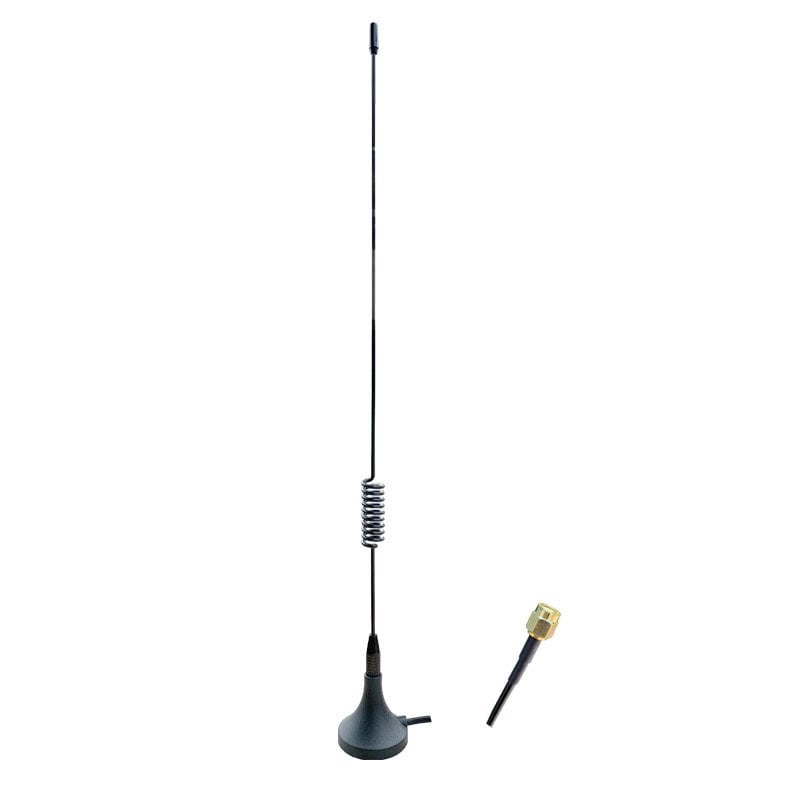

The  MRTK-Q7027I01 antenna delivers stable high omni-directional gain and across all 2G(GSM),3G
and 4G(LTE),cellular bands from 700MHz to 2.7GHz.
This high performing antenna can be used for all cellular devices and will not require changing antennas
when deploying from country to country or technology to technology like CDMA to GSM or 3G to 4G.
Being magnetic mount it is designed to be mounted on a ground plane for optimal performance
Electrical
Frequency Range  698-960/1710-2700MHz
Gain 5dBi
V.S.W.R  ≤2.0
Radiation  Omni-Direction
Polarization  Vertical
Maximum Input Power  50W
Impedance 50Ώ
Connector  SMA Male
Cable Type RG174
Cable Length 3M-5M-7M
Antenna Radome Material Steel wire
Mount way  Magnetic
Mechanical

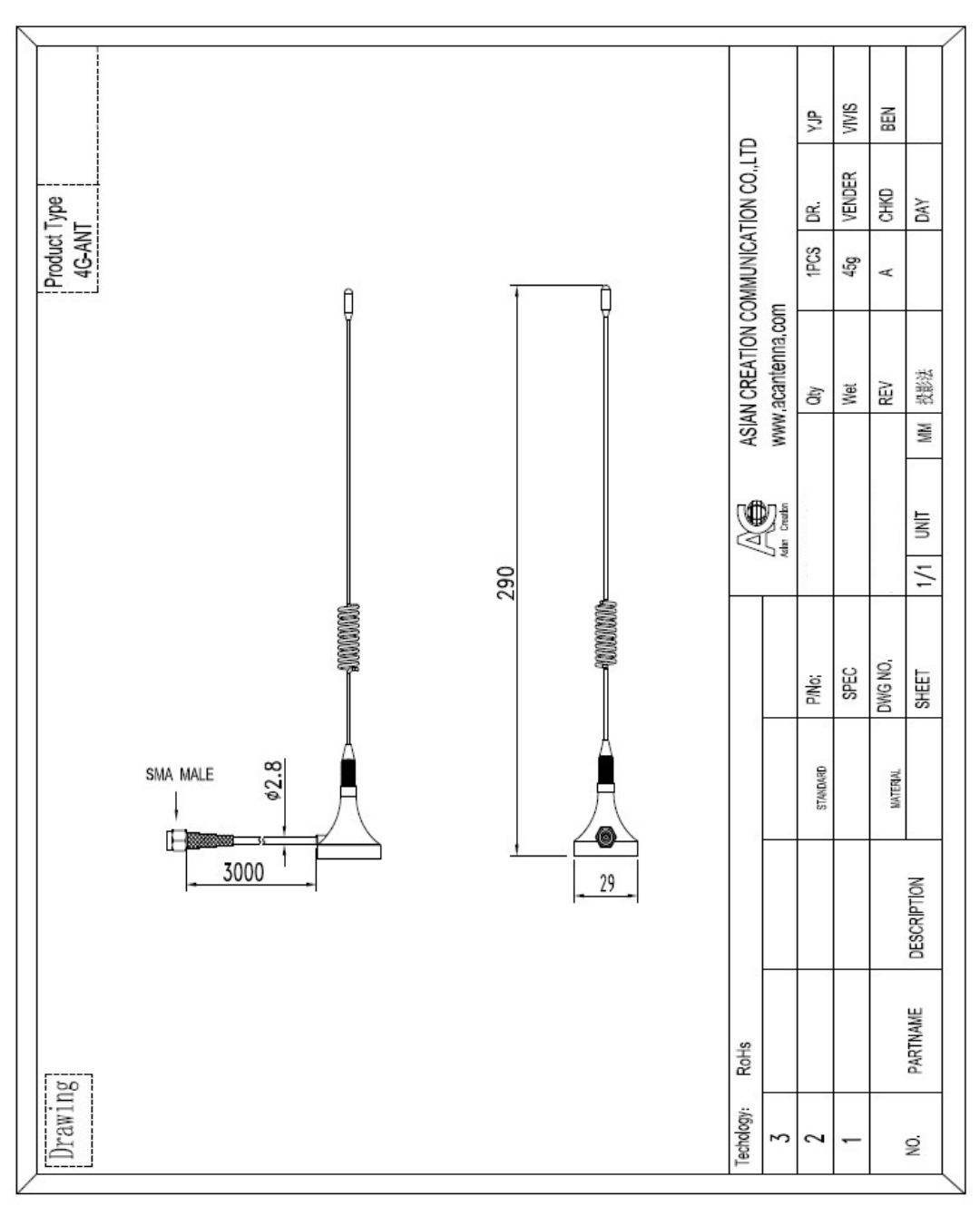

Dimensions Φ29x290mm
Weight 100g
Operating Temperature -40℃ to+70℃
RoHS Compliant YES
Kazanç : 5dBi
