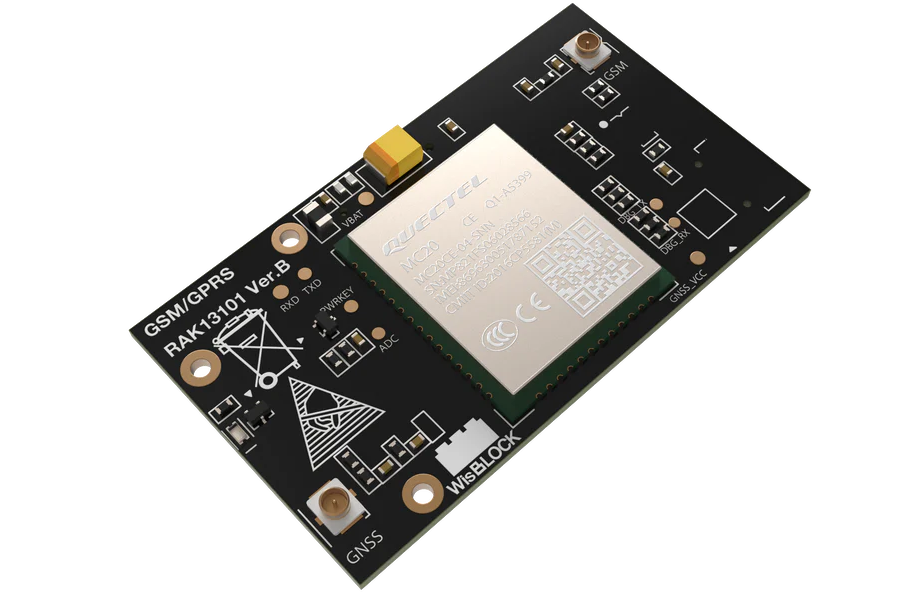

RAK13101 , GSM Quectel MC20CE

Product Description

RAK13101 is based on the Quectel MC20CE GSM/GPRS Cellular module which extends the WisBlock system to have GSM/GPRS Cellular Network capability. It can be used in regions where the cellular LTE network is not available.

Product Features

• Quectel MC20CE module
• Supports GSM/GPRS/GNSS: 850/900/1800/1900MHz
• Supports BeiDou/GPS/GLONASS/QZSS
• Built-in LNA
• IPEX connectors for the GSM and GNSS antenna
• Micro-USB debug and log output connector
• Nano SIM support
• 3.3V Power supply
• Module size: 25 X 45mm

Package Inclusion

• GSM antenna
• GPS antenna

Documentation

• RAK13101 Quick Start Guide
• Datasheet
• WisBlock Quick Start Guide
• WisBlock Source Code Repository(opens new window)
• RAK13101 3D Model(opens new window)
• 40-Pin Male Connector 3D File(opens new window)
• WisBlock Interface Tutorial
