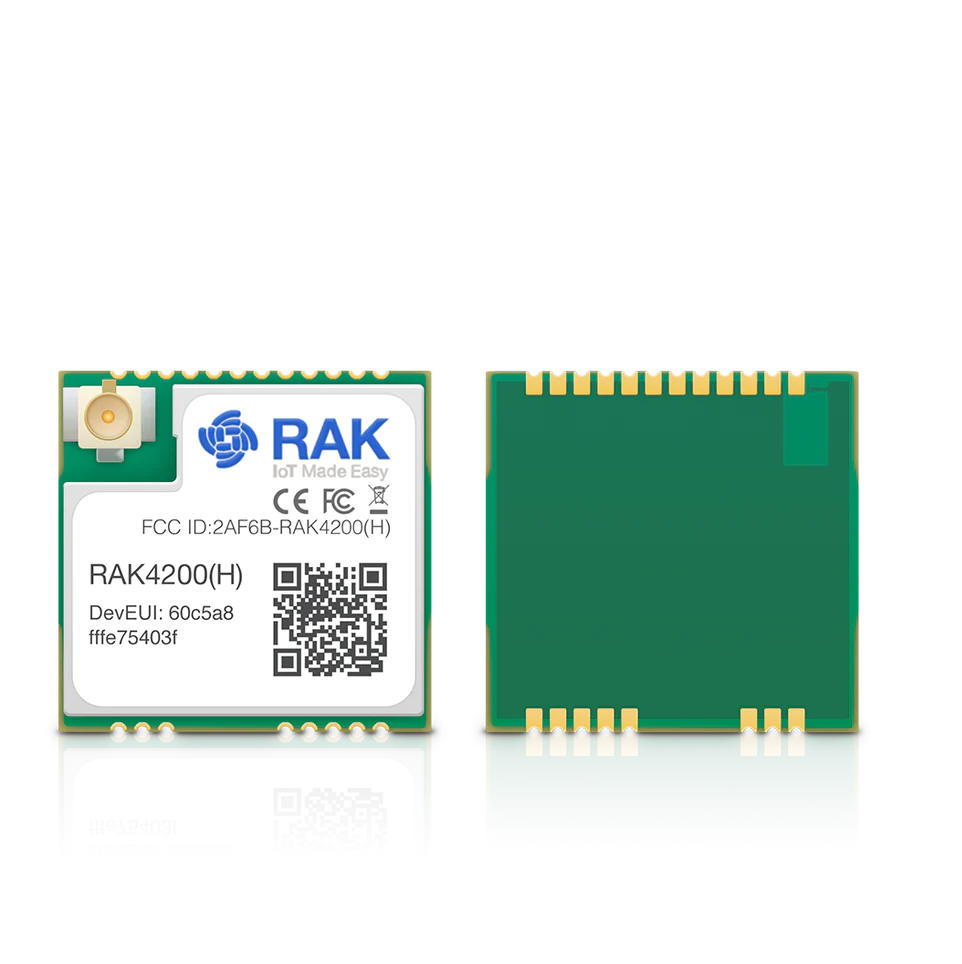

RAK4200 STM32L071 SX1276 Module for LoRaWAN
Product Description
RAK4200 LPWAN Module includes an STM32L071 MCU and an SX1276 LoRa® chip. It has an ultra-low power consumption of 1.5uA in sleep mode and high LoRa® output power up to 19dBm max in work mode.
The module complies with LoRaWAN® 1.0.2 protocols. It also supports Lora® Point-to-Point communications. The module is suitable for various applications that require long-range data acquisition and low power consumption.
Complete documentation of this product can be found on our website documentation page.
You can find a comparison table of our LPWAN modules here.
Note:
In order to have an optimal antenna matching for the Low and High LoRa bands, there are two types of modules with different hardware. The L type module only works for the 433MHz and 470MHz LoRa bands. The H type module is for the 868MHz to 923MHz (the rest of the spectrum). Note that the hardware is specific for your selected band and can't be changed.
Key Features
- LPWAN module for Smart City, Smart Agriculture, Smart Industry
- Compact Form Factor: 15 x 15.5 x 2.5 mm
- 20 Pin Stamp Pad for PCB SMT mounting
- I/O ports: UART/I2C/GPIO
- Temperature range: -40°C to +85°C
- Supply voltage: 2.0 ~ 3.6V
- Frequency range: 863MHz to 870MHz (EU) / 902 to 928MHz (US), ISM and SRD systems
- Low-Power Wireless Systems with 7.8kHz to 500KHz Bandwidth
- Ultra-Low Power Consumption 1.5uA in sleep mode
- Core: ARM 32-bit Cortex M0+ with MPU
- Up to 128KB flash memory with ECC
- 20KB RAM
Packaging
- 1pc RAK4200
