RAK4260 Evaluation Board

Product Description

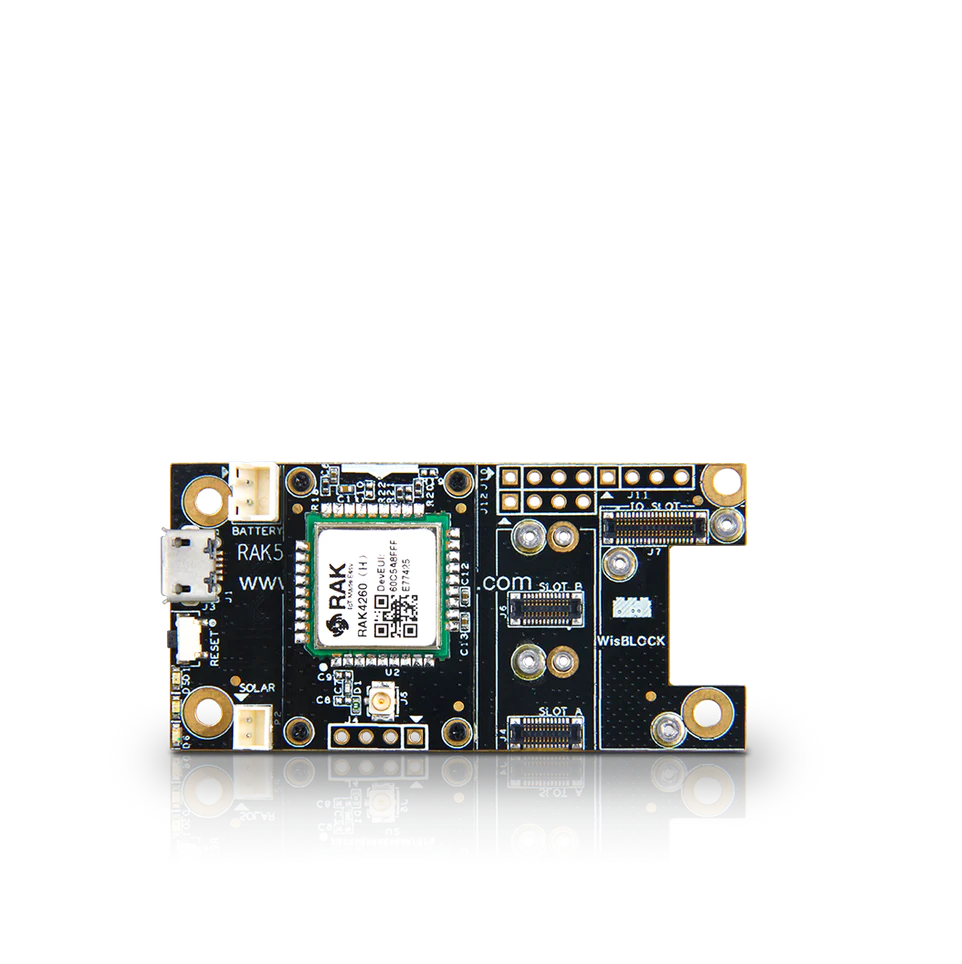

RAK4260 LPWAN Evaluation Board is a WisDuo product that consists of RAK4261 (RAK4260 LPWAN Module + Breakout board) and the RAK5005 WisBlock Base. This development board allows access to all serial and GPIO ports for easy configuration. The RAK4260 core module includes RAK Unified Interface (RUI) to help you quickly and easily develop and test your firmware.

Complete documentation of this product can be found on our website documentation page.

To properly use this product, make sure to purchase a compatible Emulator Kit. We recommend that you directly buy from SEGGER Microcontroller's site to ensure that you get a genuine product.

Key Features

• High-quality low-power LoRa® device (Microchip ATSAMR34J18 SiP)
• Fully supported 862 to 1020 MHz frequency coverage (all LoRaWAN® bands)
• High level of accuracy and stability (32MHz TXCO)
• Max Tx Power: 20dBm; Max Sensitivity: -136dBm; Rx Current: 17mA (typical)
• A rich selection of interfaces: I2C, SPI, ADC, UART, GPIOs

Packaging

• 1pc RAK4260 EVB (RAK4261 + RAK5005)
• 1pc Micro USB Cable
• 1pc SubG Antenna (iPEX)
• 2pcs 4-pin Header
• 9pcs Dupont Lines
