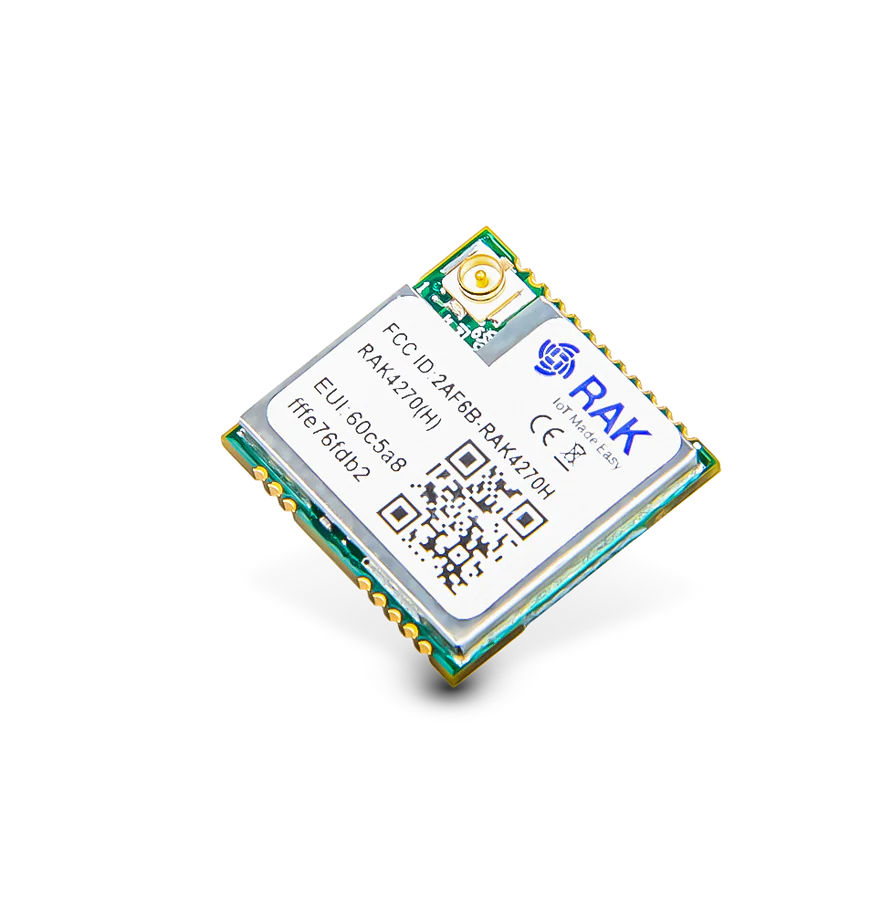

RAK4270 STM32L071 SX1262 Module for LoRaWAN
Product Description
The RAK4270 Module for LoRaWAN includes an STM32L071 MCU and an SX1262 LoRa chip, which supports 8 spreading factors (SF5 ~ SF12) and signal bandwidth that can be adjusted between 7.8 kHz to 500 kHz. It has Ultra-Low Power Consumption of 2.31 μA (down to 1.61 μA @ 2.0 V), but during the Transmit mode, it can reach the maximum output power of 22 dBm. As a receiver, it can achieve a sensitivity of -138 dBm
The module complies with the LoRaWAN® 1.0.2 protocol, so it can be used for implementing LoRa® networks or LoRa® point to point communications. The module is suitable for various applications that require long-range data acquisition and low power consumption, such as smart meters, supply chain and logistics tracking, agricultural sensors, smart cities, etc.
This module is expected to be controlled by an external controller through its UART interface by sending a set of AT commands. These AT commands control not only the state of this module but also set the LoRaWan® communication parameters and payloads (see RAK AT Command Manual).
Product Features
- It has Ultra-Low Power Consumption of 2.31 μA (down to 1.61 μA @ 2.0 V)
- Perfect for ultra-long transmission
- Highly sensitive in LoRa® modulation (~138dBm)
- Low Cost
- Stronger signal transmission (22dB max@PA_BOOST)
- Easy-to-use
LoRa Features
- LoRa module is suitable for applications in Smart City, Smart Agriculture, Smart Industry.
- LoRa bandwidth range of 7.8 kHz to 500 kHz, SF5 to SF12, BR=0.018~62.5 kb/s
Product Specifications
- Compact form factor: 15 x 15.5 x 2.5 mm (LxWxH)
- 20 pin stamp pad for PCB SMT board-to-board soldering
- I/O ports: UART/I2C/GPIO
- AT commands control interface
- Temperature range: -40°C to +85°C
- Supply voltage: 2.0 to 3.6V
- Arm Cortex-M0+ 32-bit RISC core
- 128kb flash memory with ECC
- 20kb RAM
- 6kb of data EEPROM with ECC
Product Details
- Product Dimension: 15 x 15.5 x 2.5mm
- Product Weight: 1.08g
