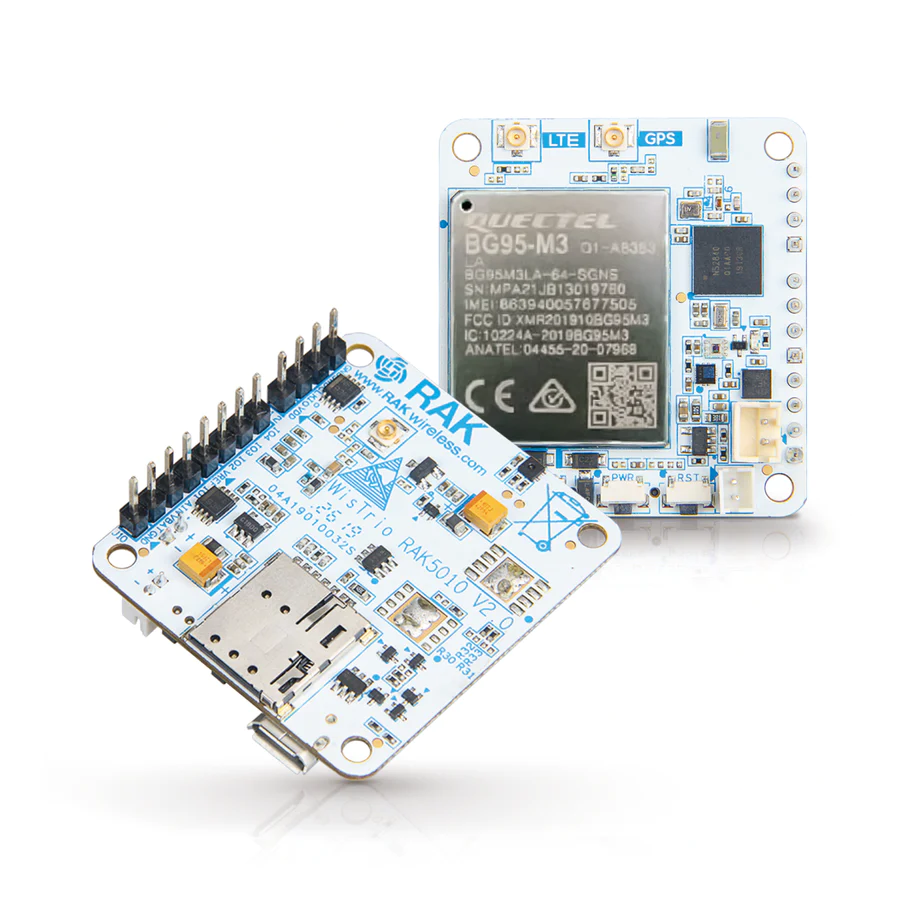

RAK5010 , WisTrio NB-IoT Tracker Pro Quectel BG95-M3
Product Description
WisTrio NB-IoT Tracker Pro (RAK5010-BG95) is a tracker with integrated LTE CAT M1 & NB2, GNSS, BLE, and sensors. It is built on the Quectel BG95-M3 LTE CAT M1 & NB2 module, which has an integrated GNSS receiver. The MCU running the board is a Nordic nRF52840 controller.
As it has both GNSS and BLE it can be used for outdoor and indoor scenarios, where location-based services need be present.
The built-in sensors for RAK5010-BG95 are temperature and humidity sensor, motion sensor, pressure sensor, and light sensor, while the RAK5010-M-BG95 model features just the temperature and humidity sensor and 3-axis motion sensor for a reduced price. The extension IOs allow adding more sensors in addition to the on-board ones.
This board is particularly suitable to be used as a quick testing and prototyping tool for applications requiring NB-IoT connectivity. Application development supports the GCC environment.
To properly use this product, make sure to purchase a compatible Emulator Kit. We recommend that you directly buy from SEGGER Microcontroller's site to ensure that you get a genuine product.
The Quectel cellular modem on the RAK5010 has been changed from BG96 to BG95-M3 due to the supply situation. If using the AT command interface, the two versions are compatible. If using a custom firmware (created with our RUI V2 or another IDE), you have to take into account that on the BG95-M3 you cannot use the cellular connection and the GNSS location acquisition at the same time. You have to stop the cellular connection before you can start the location acquisition!
Key Features
- Quectel BG95-M3, with LTE CAT M1, LTE NB2, and GNSS
- Nordic nRF52840, with BLE5.0 and long-range BLE.
- nRF52840 integrates an ultra-low-power ARM Cortex-M4 (64Mhz) microcontroller
- Built-in sensors of RAK5010-BG95 model:
- Humidity and temperature sensor
- Pressure sensor
- 3-axis motion sensor
- Ambient light sensor
- Built-in sensor of RAK5010-M model:
- Humidity and temperature sensor
- 3-axis motion sensor
- iPEX connectors for the LTE and GNSS antenna and an on-board ceramic antenna for the BLE.
- nano-SIM and ESIM options.
- Can be powered by either Micro USB, 3.7V rechargeable battery and has a 5V Solar Panel Port to recharge the battery
- Multiple interfaces, I2C, UART, GPIO, ADC
Packaging
- Product Dimensions: 41mm x 38mm x 16mm (with headers)
- Product Weight: 30g
- Inclusions:
- 1x RAK5010-BG95 or 1 pc RAK5010-M-BG95
- 1x GNSS iPEX Antenna
- 1x LTE iPEX Antenna
- 1x Micro USB Cable
- 1x Battery Line
