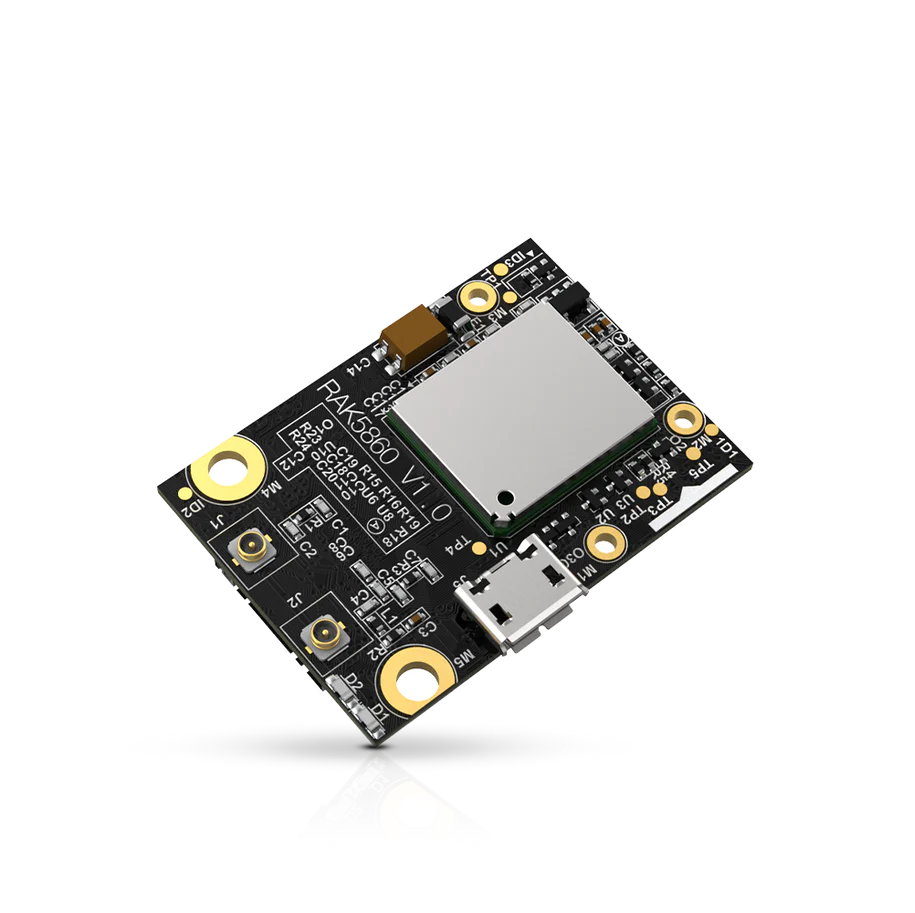

RAK5860 , NB-IoT LTE CAT M1 Quectel BG77

Product Description

RAK5860 is based on the Quectel BG77 NB-IoT and LTE-M module. It supports CAT M1 and CAT NB2 cellular IoT wireless protocols.

RAK5860 has, in addition, a GNSS location option that can use both GPS and Glonass satellites.

RAK5860 is the solution when your LoRa® application needs access to IoT but is outside the coverage of WiFi networks or LoRaWan® gateways.

RAK5860 adds wireless communication options to your solution. It can be used for example as a gateway between your LoRa nodes over LTE.

RAK5860 can be comfortably programmed with the Quectel AT command interface.

RAK5860 is ideal for battery-powered applications because the WisBlock system allows to power down the module completely to reduce the power consumption of the system.

Key Features

• Based on the Quectel BG77 module
• UART communication with WisBlock Core microcontroller
• Programmable with Quectel AT command set
• iPEX connectors for external LTE and GPS antennas
• Nano SIM and ESIM options
• Supports LTE CAT M1 and LTE CAT NB2
• GNSS location

Package Inclusion

• 1pc RAK5860
• 1pc Active GPS Antenna
• 1pc LTE Antenna

Documentation

• Datasheet
• WisBlock Quick Start Guide
• WisBlock Source Code Repository(opens new window)
• RAK5860 3D Model(opens new window)
• 40-Pin Male Connector 3D File(opens new window)
• WisBlock IO Tutorial
