RAK7201V2

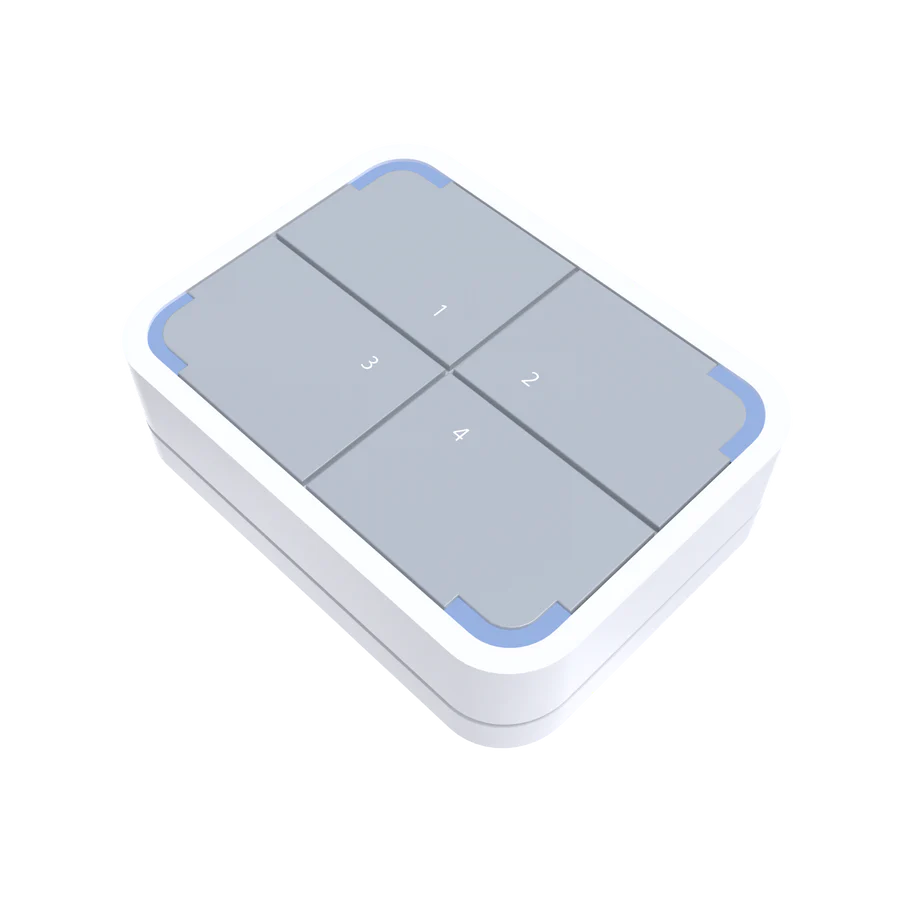

RAK7201V2 , WisNode Button 4K

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*

Product Description

The WisNode Button is a remote wireless trigger device. It supports user-defined functions for each key and is based on the LoRaWAN1.0.3 protocol. Supported LoRaWAN® bands are IN865, EU868, AU915, US915, KR920, and AS923.

The updated RAK7201V2 RAK Button 4K comes with an upgraded 400mAh battery. It is based on the RAK3172 low-power long-range transceiver module for LoRaWAN® for more optimized battery performance and better connectivity. The RAK7201V2 provides improved visualization of the battery charge with the four LEDs.

The Button is suitable for a variety of Smart Home applications: Entertainment system control, Control of Lights, a Snooze Button for your Alarms, or a remote trigger. With long-range wireless connectivity, amazing battery life, and four programmable buttons, there are a ton of applications this device can fit into.

Product Features

  • 4 Buttons with LED indicator
  • LoRaWAN®1.0.3 compatible
  • Battery: 400mAh
  • Power Consumption: Sleep mode 6.25 uA @ 4.2 V
  • Operating current (TX mode) *: 87(19.2 dBm @ 868Mhz)
  • Battery working time: ~ 1 year (Rechargeable)
  • Working Environment: Indoor
  • Product Size: 43x57x15 mm
  • Operating Temperature: -10º C to 60º C
  • Based on RAK3172
  • Charging and configuration port: micro-USB

*Transmit current depends on factors such as transmit power, SF, and Payload Length

Product Inclusions

  • 1pc RAK7201V2-4 Key Button
  • 1pc Micro USB Cable
  • 1pc Double-sided adhesive Sticker

Documentation
