Description

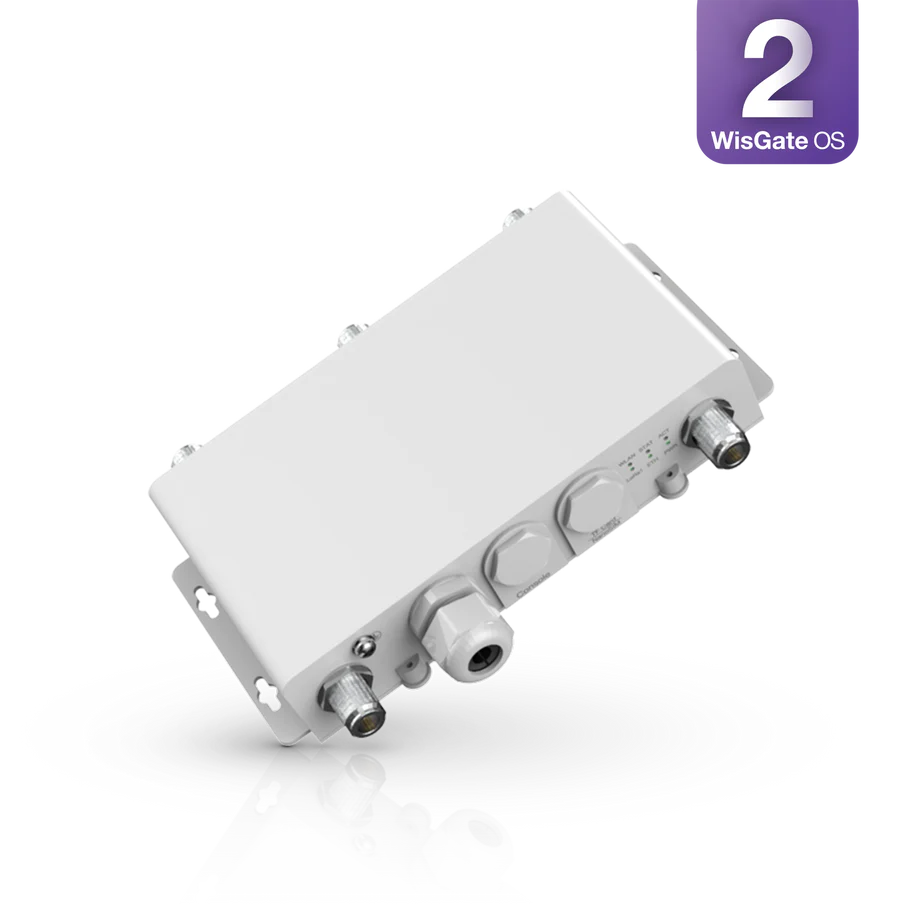

WisGate Edge Prime Version 2 (RAK7240V2/RAK7240CV2) is RAK’s newest outdoor LoRaWAN gateway.

It is based on the latest SX1303 LoRa core, providing better sensitivity and improved performance. The gateway is available in 8 or 16-channel versions to help you utilize the maximum of the available LoRaWAN channels in your region.

The gateway supports multi-backhaul with Ethernet, Wi-Fi, and Cellular connectivity.

There are two options regarding the supported power supply: One supports only PoE power, and the other is equipped with a dedicated port for different power options. It supports DC power input (9~24VDC) and our Battery Plus. When used with RAK Battery Plus and Solar kit the information about the battery use and capacity, charging states, and performance information is available in the WisGateOS2 WebUI and in WisDM. You can add the RAK Battery Plus and solar kit from the Check to Include option.

The device comes with the newest WisGateOS 2 which provides all the existing features but adds a new design, many options, and tooltips. It comes with extension add-ons – an option to add and manage additional features catering to your needs.

The gateway can be managed remotely via the WisDM platform.

The RAK7240V2/RAK7240CV2 is suited for any use case scenario, be it rapid deployment or customization regarding UI and functionality.

The flat surface of the full metal enclosure allows your logo to be added for brand customization and recognition.

Supported LoRaWAN Network Servers: Chirp Stack v3/v4, TTN/TTS, AWS IoT Core for LoRaWAN, AWS IoT core integration, Actility LNS with Basics Station (8-channel only).

Note: The cellular option is only available for the 8-channel LoRaWAN gateway.

Features

Hardware

IP65 industrial-grade enclosure with cable glands
PoE (802.3af) + Surge Protection
Dual LoRa Concentrators for up to 16 channels
Backhaul: Wi-Fi, LTE (for the 8-channel version) and Ethernet
GPS
Supports DC 9~24V, RAK Battery Plus (optional)
External antennas for Wi-Fi, GPS, and LTE, External antenna for LoRa
Dying gasp

Software

WisGateOS 2
Extension add-ons
Built-in Network Server
LoRaWAN 1.0.3 (LoRaWAN 1.0.4 for the Built-in server is coming soon)
Basics Station and Packet forwarder
LoRa Frame filtering (node whitelisting)
MQTT v3.1 Bridging with TLS encryption (compatible with ChirpStack LNS)
Buffering of LoRa frames in Packet Forwarder mode in case of NS outage (no data loss)
Fine timestamping (optional)

Package Inclusion

Note: The LoRa antennas are not included in any package. They need to be bought separately, one for the 8-channel variant and two for the 16-channel variant.
