RAK8213 , WisLink Cellular mPCIe Quectel BG96
Product Description

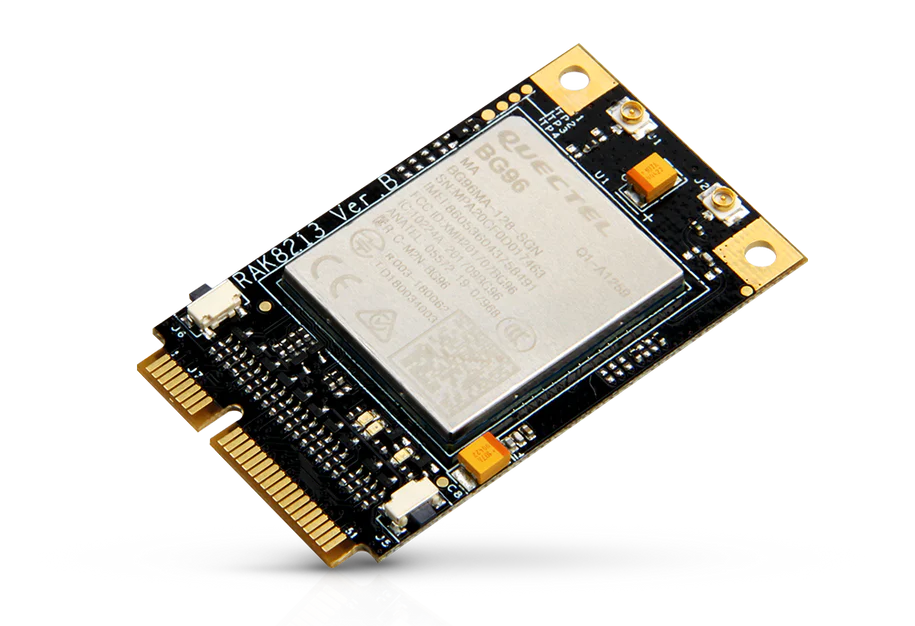

WisLink Cellular mPCIe (RAK8213) is a multi-band LTE Cat M1/Cat NB1/EGPRS module based on the Quectel BG96 with a standard PCI Express® form factor (Mini PCIe). It offers a maximum data rate of 375Kbps downlink and 375Kbps uplink.
RAK8213's built-in GNSS module can support GPS, GLONASS, BeiDou/Compass, Galileo, QZSS, integrated GNSS greatly simplifies product design and provides faster, more accurate, and more reliable positioning.
Rich Internet protocol, industry-standard interfaces (USB/UART/I2C/Status indicators) and rich features (applicable to Windows XP, Windows Vista, Windows 7/8/8.1/10, Linux drivers for Linux and Android) Modules that extend applicability are suitable for a wide range of M2M applications such as wireless POS, smart metering, and tracking.
Product Applications
- M2M and IoT applications
- Tracker application
Key Features
- LTE Cat. M1/Cat.NB1/EGPRS module with Mini PCIe form factor, optimized for M2M and IoT applications.
- Ultra-low power consumption.
- USB Drivers and support 2.0 high-speed interface.
- Quectel Enhanced AT commands.
- Feature refinements: supports DFOTA, VoLTE.
- Easy migration from Quectel GSM/GPRS, UMTS/HSPA, and LTE modules.
- Robust mounting and interfaces
- PCM interface available for VOLTE
Product Details
- Product Dimensions: 51mm x 30mm x 4.9mm (± 0.2mm)
- Product Weight: 8.9g
Package Inclusions
- 1x WisLink Cellular mPCIe (RAK8213) module
- 1x iPEX LTE Antenna
- 1x iPEX GPS Antenna
