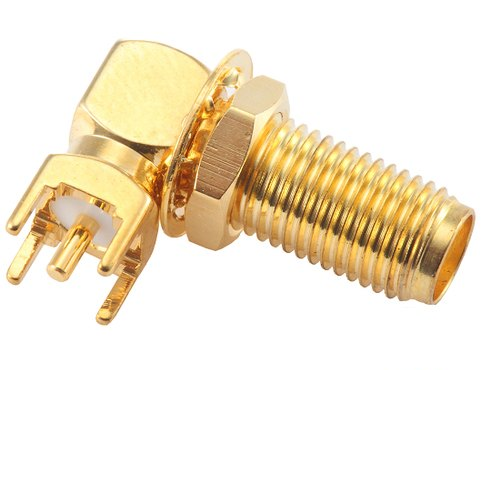

| SMA Female Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch | ||
| Hole Spacing. | ||
| It has an interface type of thru hole and a 50 Ohm impedance and uses shield/contact solder as an | ||
| attachment method. Our female RP SMA right angle pcb connector provides a minimum frequency of | ||
| DC and a maximum frequency of 6 GHz. | ||
| This right angle RP SMA female pcb connector has a teflon dielectric type and a VSWR is less than | ||
| 1.5. It also has a cooper body with gold plating and beryllium copper contact. | ||
| This RP SMA female right angle pcb RF connector is RoHS compliant. |
| Electrical | ||
| Frequency | DC to 3GHz | |
| Impedance | 50ohms | |
| Orientation | Right Angle | |
| VSWR | Straight 1.20 max .Right angle 1.25 max | |
| Termination Style | PCB | |
| Temp.range | -65～+165°C (PE Cable -40～+85°C) | |
| Vibration | MIL-STD-202,Method 213 | |
| Working Voltage | 335V max | |
| Withstand Voltage | 1000V rms | |
| Center Contact | ≤ 3 mΩ | |
| Outer Contact | ≤ 2 mΩ | |
| Insulation resistance | ≥ 5000 MΩ | |
| Insertion loss | ≤0.15 dB | |
| Durability(mating) | ≥500 cycles | |
| Part Name | Material | Finish |
| Body,Metal Parts | Brass | Gold,Nickel |
| Center Contact (Plug) | Brass | Gold |
| Center Contact (Jack) | Beryllium Copper | Gold |
| Insulator | PTFE | |
| Crimp Ferrule | Annealed Copper | Glod or Nickel |
| Clamp Gaskets | Silicone Rubber | |
