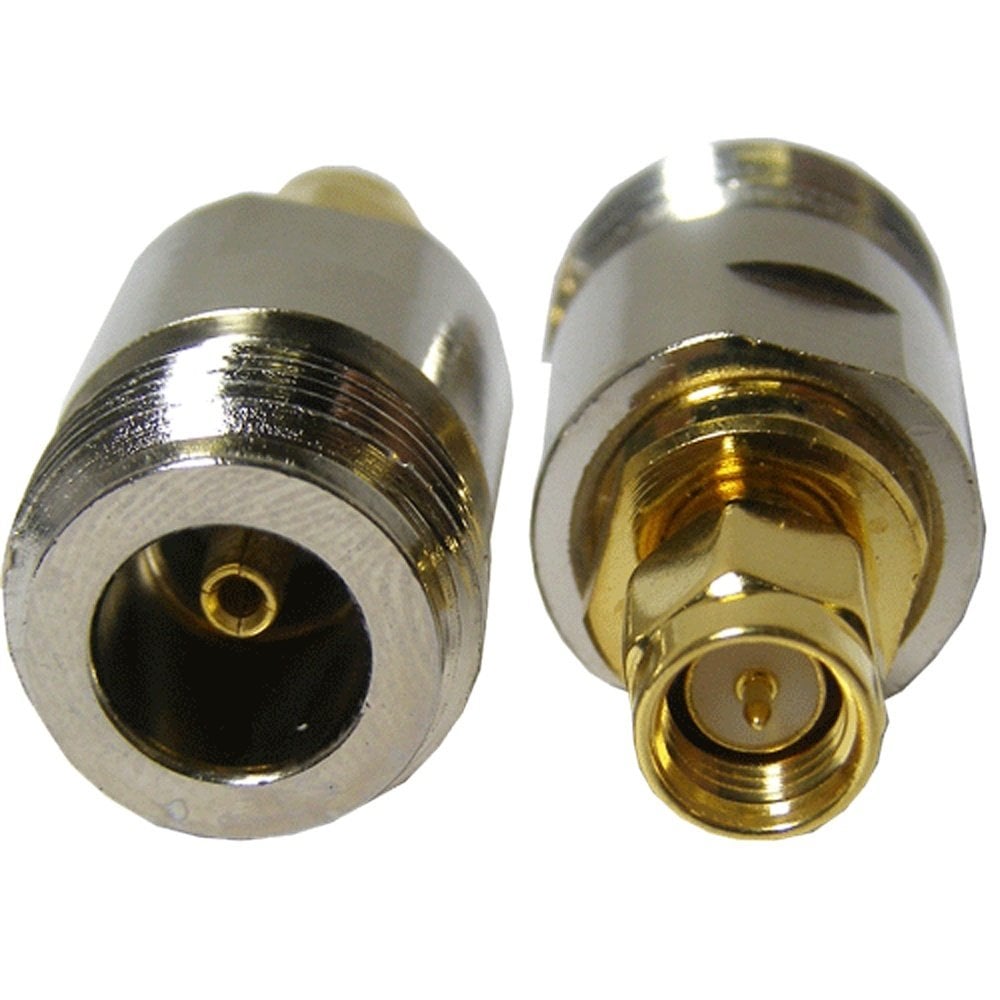

| N to SMA adapters are available with male or female genders and in 50 Ohm impedance. | |
| These N to SMA adapters include straight body style in standard polarity. | |
| This adapter operates from 0-6 GHz.The SMA connector mates mechanically with commercially | |
| available 3.5mm and 2.92mm (K)connectors. | |
| It provides excellent VSWR of 1.2:1 maximum. | |
| RF adapters can be used to enable connections between two connector types that would otherwise | |
| not mate. |
| Electrical Specifications | |
| Connector Series 1 | SMA |
| Connector Gender 1 | Male |
| Connector Polarity 1 | Standard |
| Connector Impedance 1 | 50 Ohm |
| Connector Series 2 | N |
| Connector Gender 2 | Female |
| Connector Polarity 2 | Standard |
| Connector Impedance 2 | 50 Ohm |
| Frequency, Min | DC |
| Frequency, Max | 6 GHz |
| Adapter Body Style | Straight |
| Connector Mount Method 1 | None |
| Connector Body Material 1 | Brass |
| Connector Body Plating 1 | Nickel |
| Connector Mount Method 2 | None |
| Konektör Türü - 1 | : | SMA - Male |
| Konektör Türü - 2 | : | N - Female |
