| The U.FL (IPX) is the smallest RF connector that we carry…and it’s tiny! | |
| A mated connection only stands 2.5mm high!U.FL is good up to 6GHz. | |
| They are Often times they’re used in laptop WiFi cards and embedded systems. | |

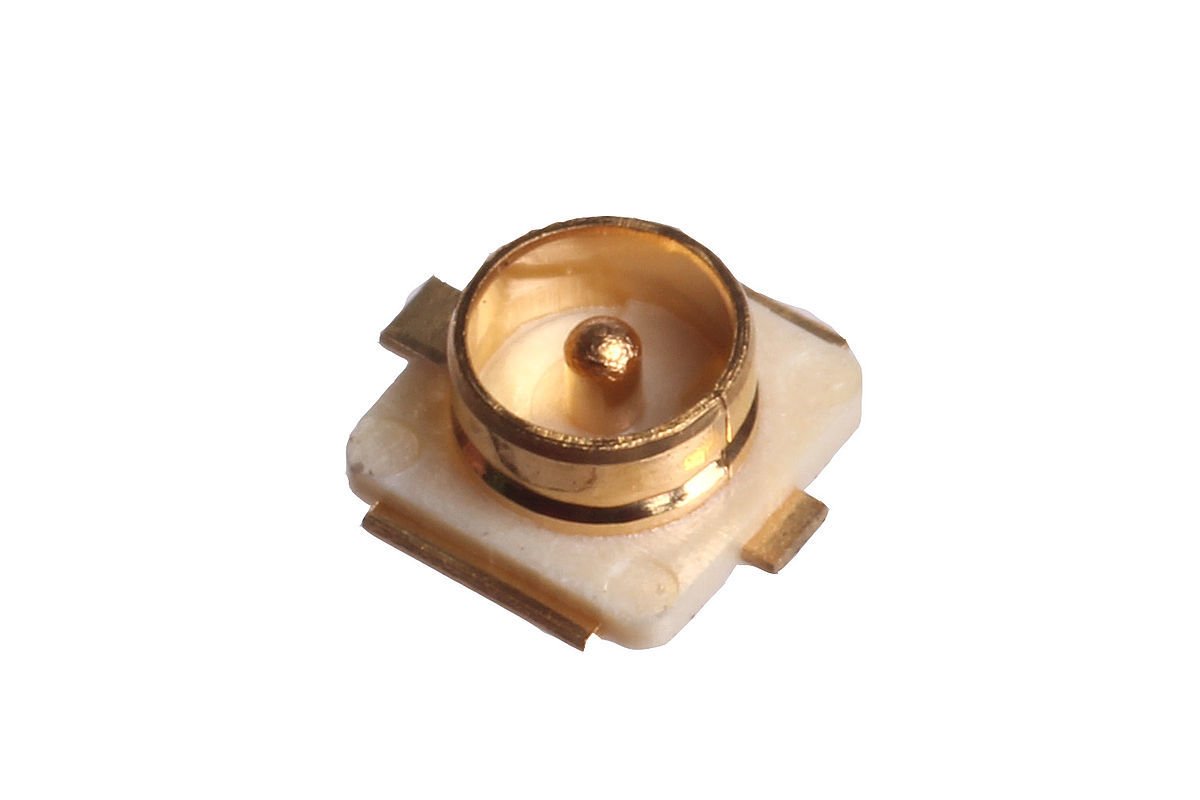

| Male U.FL connectors are surface-mount parts soldered directly into the host. | |
| Female connectors are usually manufactured as a cable assembly with a high-quality 1.32mm doubly | |
| shielded cable. | |
| Female U.FL connectors rely on pressure from the shape of the connector to keep it secure. | |
| This does form a very tight ‘snap in’ connection. As a result, female U.FL connectors will | |
| wear out after a several connections and will need to be replaced as they aren’t generally intended | |
| to be connected and disconnected multiple times. |
| Electrical Specifications | |
| Frequency | DC to 6 GHz |
| Voltage Rating | AC60Vr.m.s |
| Nominal Impedance | 50 Ohm |
| VSWR | 1.3 MAX at 0.1-3GHz |
| 1.5 MAX at 3-6GHz | |
| Temperature Range | -40°C to +90°C |
| MATERIALS | Brass |
