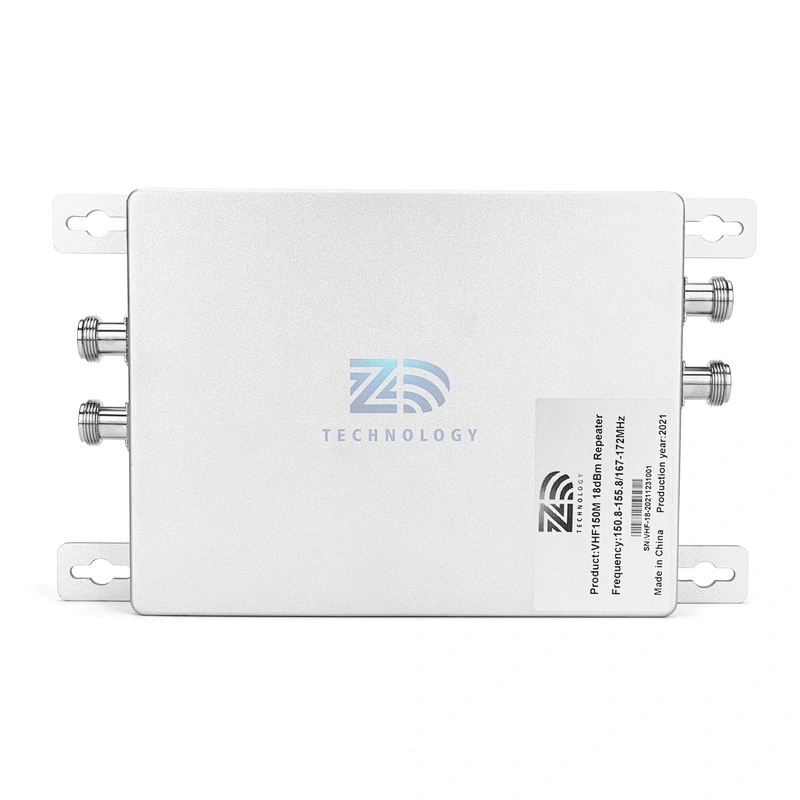

VHF 150M 18dBm repeater
Product Description
NOTE1: The antenna isolation of BTS1 and BTS2 is greater than 20dB.
NOTE2: The antenna isolation of MS1 and MS2 is greater than 20dB.
NOTE3: The antenna isolation of BS and MS is greater than 85dB.
Items |
Specifications | |||
| Forward | Reverse | |||
| Frequency Range (MHz) | 160-175 | 140-155 | ||
| Operation Band Width (MHz) | 5 | 5 | ||
| Max. Output Power (dBm) center frequency | 18± 2 | 18± 2 | ||
| Max. Gain (dB)center frequency | 70± 3 | 70± 3 | ||
| ATT Adjustable Range/step (dB) | 0 ~ 30/1 | 0 ~ 30/1 | ||
| ATT Adjustable Error (dB) | ≤|±1.5| | ≤|±1.5| | ||
| Ripple In Band (dB) At +25℃ | ≤6.0 | ≤6.0 | ||
| ALC Range (dB) | 0 ~ 20 | 0 ~ 20 | ||
| 3rdinter-modulation(dBc) (Max. Gain) | ≤-36/30kHz(2 tone of 600KHz spacing) | |||
Out of Band Spurious Emission |
9kHz~150kHz | ≤-36dBm/1kHz | ≤-36dBm/1kHz | |
| 150kHz~30MHz | ≤-36dBm/10kHz | ≤-36dBm/10kHz | ||
| 30MHz~1GHz | ≤-36dBm/100kHz | ≤-36dBm/100kHz | ||
| 1GHz~12.75GH | ≤-30dBm/1MHz | ≤-30dBm/1MHz | ||
| Out of Band Rejection(dBc) At +25℃ |
offset± 2.5 MHz | ≤-45 | ≤-45 | |
| Noise Figure (dB) (Max. Gain) | ≤6.0 | ≤6.0 | ||
| Total Processing Delay (us) | ≤5.0 | ≤5.0 | ||
| Input VSWR(Power up, Min. Gain, Pin=-30dBm) |
≤2.0 | ≤2.0 | ||
| Impedance (Ω) | 50 | |||
| RadioConnector | BTS1(DL-IN)/ BTS2(UL-OUT) | N(f)*2, Separation of UL&DL | ||
| MS1(UL-IN)/MS2(DL-OUT) | N(f)*2, Separation of UL&DL | |||
| Power Supply(V) | AC110-220; 50~60Hz | |||
| Power Consumption (W) | ≤25W | |||
| Dimension (mm) | 180x 139x28 | |||
| Operating Temperature (℃) | -25~ +65 | |||
| Humidity (%) | 85 | |||
| Housing class | IP30 | |||
| Control Function | Local: USB2.0 | |||
NOTE2: The antenna isolation of MS1 and MS2 is greater than 20dB.
NOTE3: The antenna isolation of BS and MS is greater than 85dB.
