DL-CC1310-B868, 868MHz Wireless Transparent, SoC Transceiver Module, TI CC1310 Chip

Brief Introduction

DL-CC1310-B Wireless Module is a SoC embedded Serial Port RF Transceiver Module (UART Module) with AT command, which was developed by DREAMLNK based on TI' CC1310 (built-in dual-core ARM) Radio Frequency chip. It combines an integrated RF Controller (Cortex®-MO) and a powerful Arm® Cortex®-M3 Processor, the Clock Speed of the MCU can reach up to 48MHz.

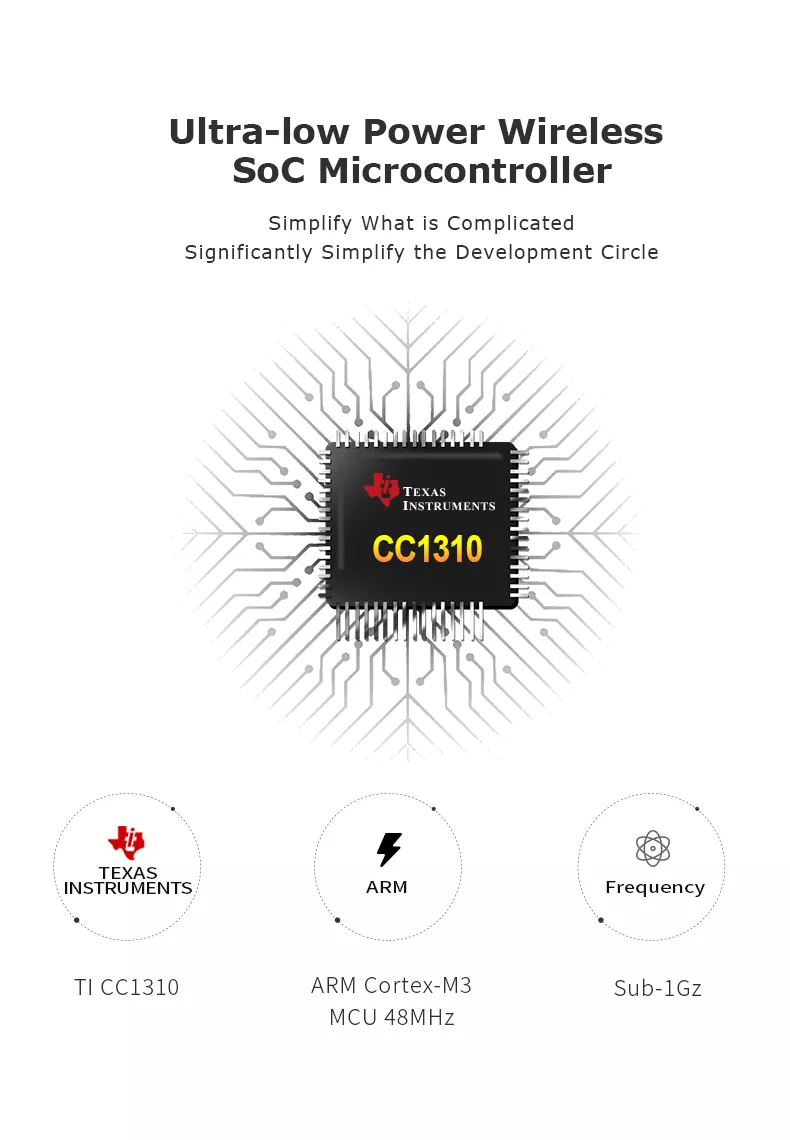

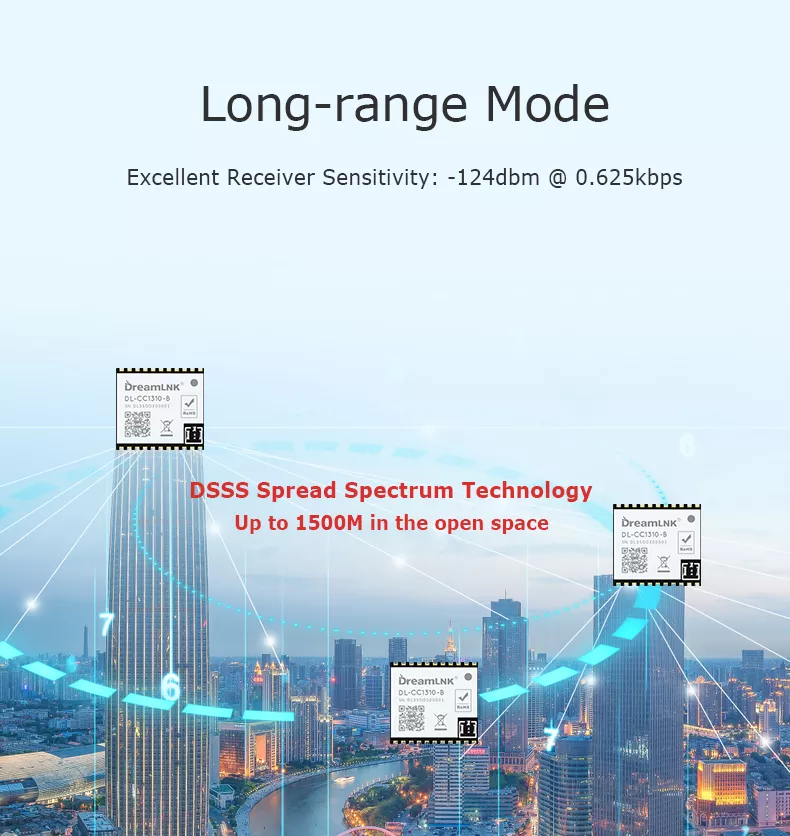

This DL-CC1310-B Wireless Module supports Narrow-band Communication, Direct Sequence Spread Spectrum (DSSS), Long-range Transmission and High-efficiency Communication. It has built-in fully functional AT Commands that support any Serial Baud Rate setting from 1920bps to 256000bps, which can greatly improve the communication efficiency with up to -124dBm receiver sensitivity.

The embedded software makes this Wireless Module support not only Transparent Transmission Mode, Accurate Signal Strength Indication, automatic CCA (Clear Channel Assessment), but also High-speed Data Stream & Packet Segmentation Transmission, which can effectively reduce the probability of signal collision.

Hardware Features:

● Original CC1310 Chip from TI;

● SOC integrated RF module with metal shield

● Industrial grade components: 433/868/915MHz

● Wide supply voltage range: 1.8V to 3.8V;

● Ultra-low sleep current < 1uA;

● High efficiency receiving performance (RX current @ 5.5mA);

● High Transmission Efficiency:

TX (+10dBm): 17mA;

TX (+14dbm): 27mA;

● Excellent Receiver Sensitivity:

Long Range Mode: -124dbm at 0.625kbps;

Universal Mode: -110dbm at 50kbps;

● Accurate Signal Strength Indication and Clear Channel Assessment (CCA).

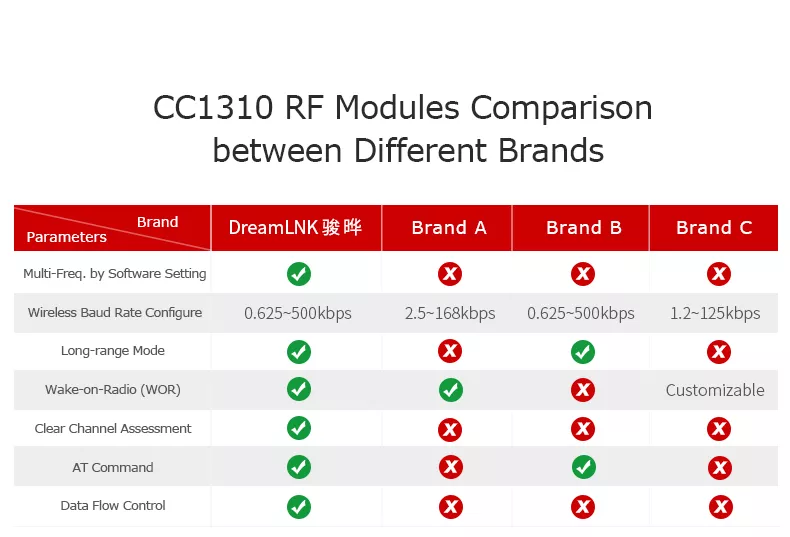

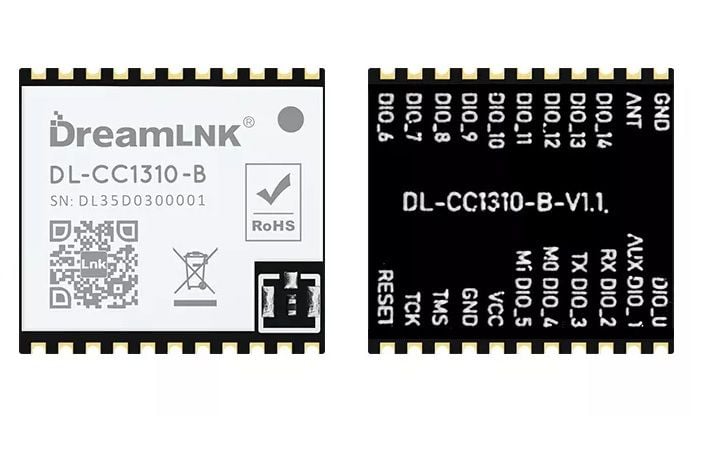

● Compact size for SMD mounting (Dimensions = 18x16.5mm)

Software Features:

● Easily configure with defaulted AT command, for a simple development;

● Transparent Transmission Mode supported;

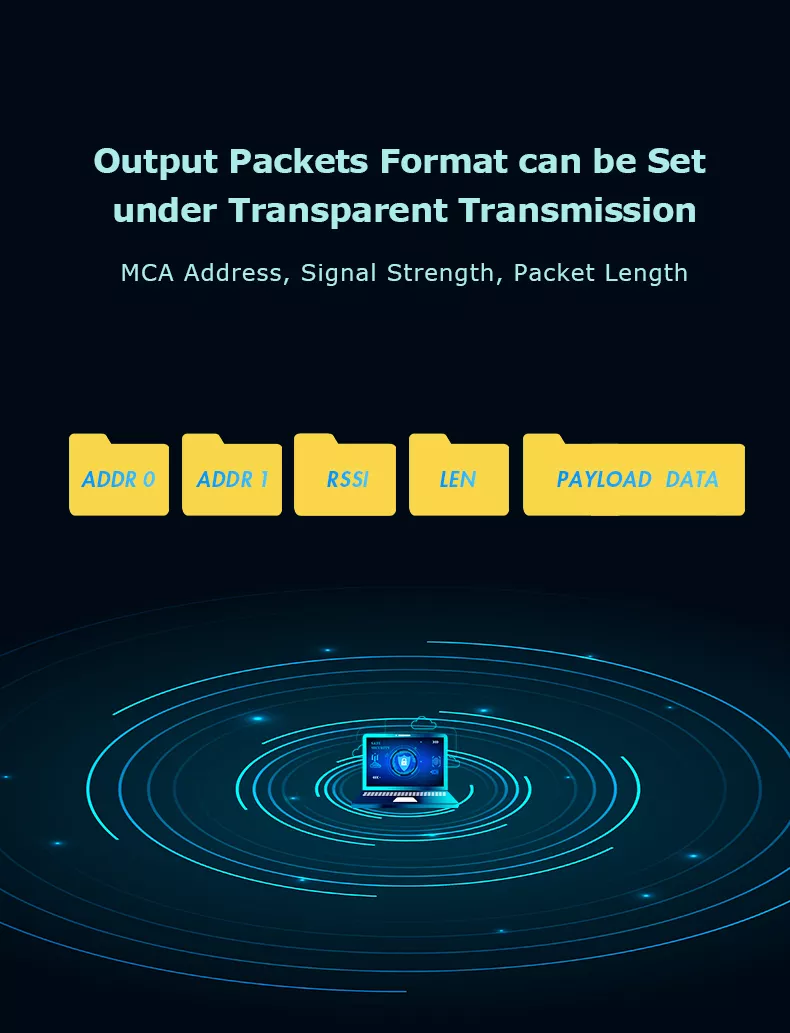

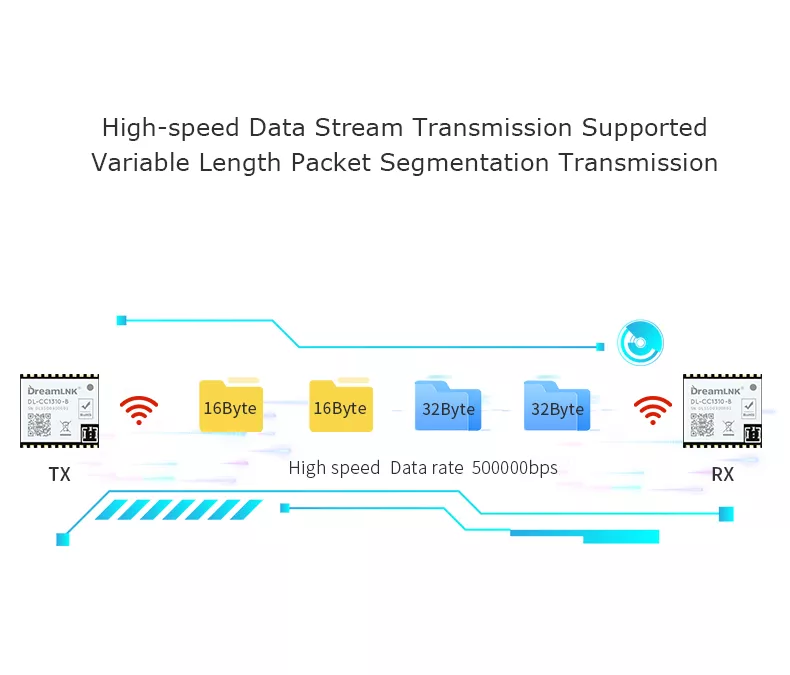

● Data flow control & high-speed data stream transmission supported;

● 1920-256000bps serial baud rate is supported;

● 0.6kbps-500kbps wireless baud rate is supported;

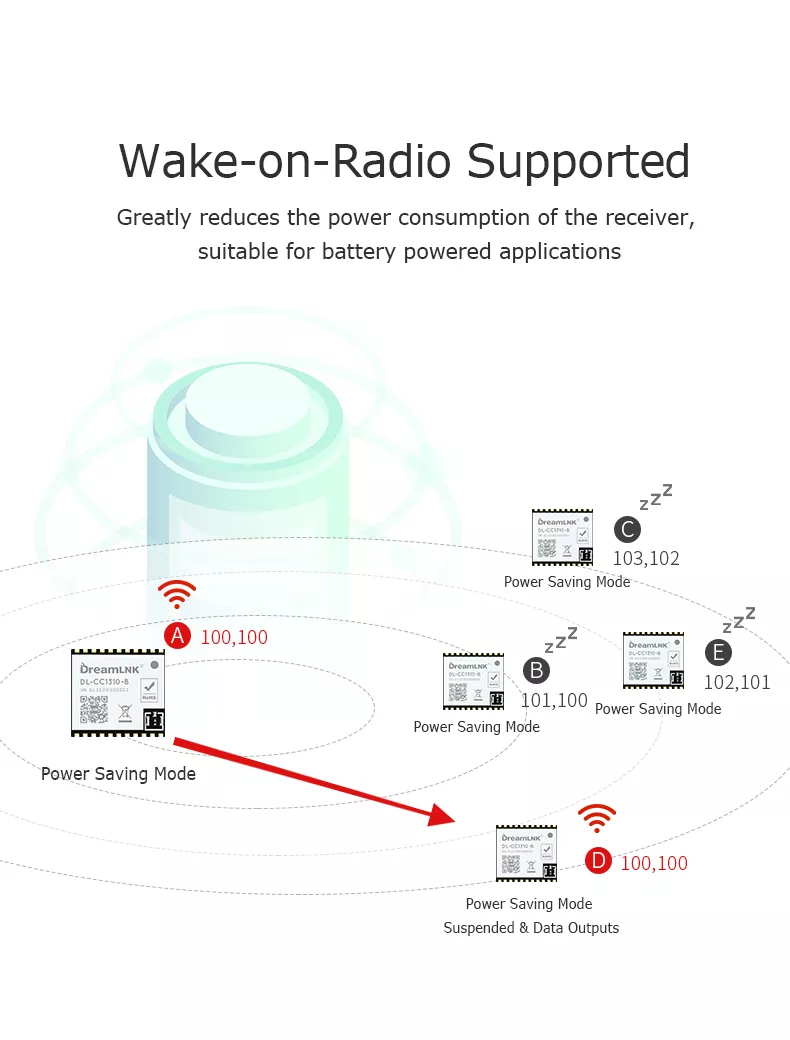

● Wake-on-Radio (eWOR) function supported, which can be greatly increases the battery standby time;

● Packet Segmentation Supported

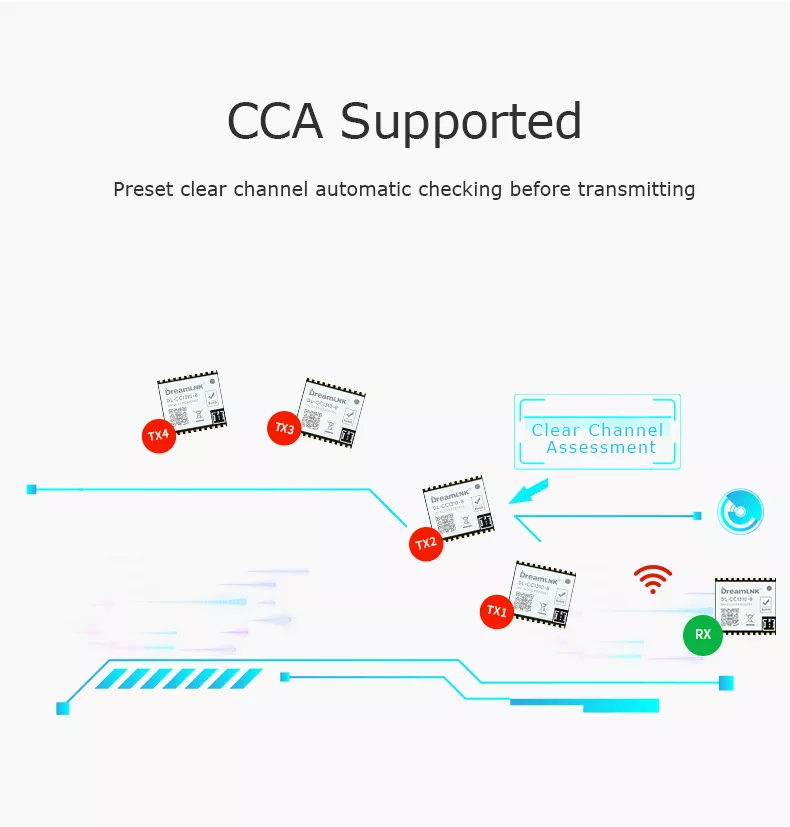

● Preset CCA (Clear Channel Assessment) function, which can effectively reduce the collision probability of co-frequency interference;

● Strong Anti-jamming: supports anytime RSSI acquisition and CCA (Clear Channel Assessment);

● Supports manual fast frequency hopping to avoid co-frequency interference;

● Point-to-Point, Broadcasting and Monitoring transmission can be achieved.

Technical Parameter

Recommended Configuration
