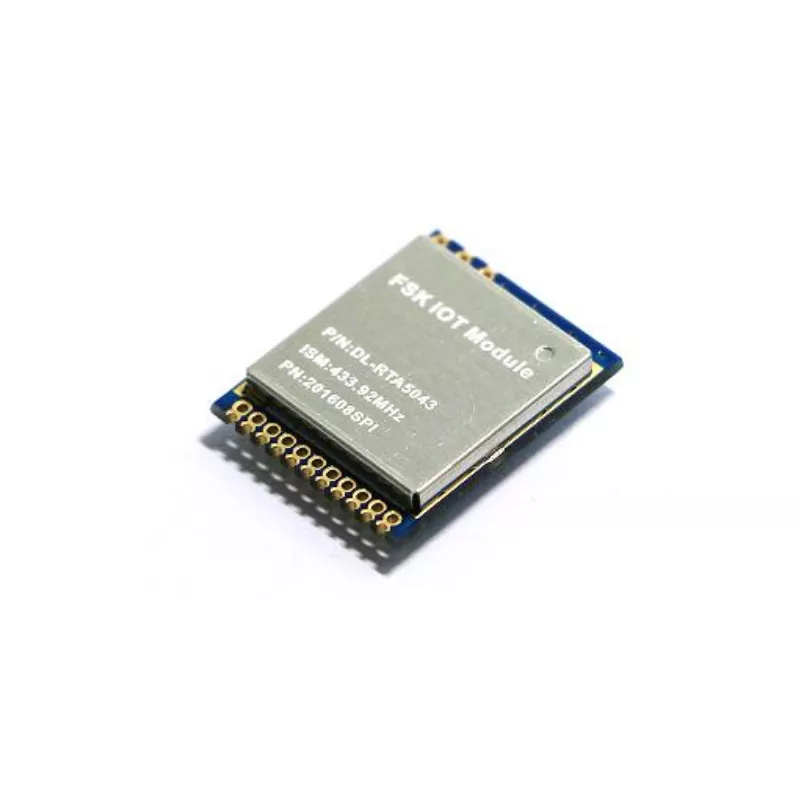

DL-RTA5043 ,433MHz FSK/GFSK Wireless Transceiver Module with Swiss AXSEM AX5043 Chip
-
DL-RTA5043 - 433Mhz
- Swiss AXSEM AX5043
-10~18dBm- 1.8~3.6V
-126dBm- 2100m
- 19.8*16*2mm
High-performance FSK Transceiver Module with Swiss AXSEM AX5043 chip
DL-RTA5043 is a 50mW narrowband (centralized power) wireless data transmission module based on AX5043 RF chip from Swiss AXSEM. It works in 433.92MHz ISM band and uses SPI port for data transmission, which reduces the cost budget for wireless applications.Narrow-band transmission has the advantages of concentrated power density, long transmission distance and strong anti-jamming ability, and greatly increases transmission distance compared with other similar products at the same power. The module can configure FEC forward error correction algorithm, which has high encoding efficiency and strong error correction ability. It can actively correct the jammed packets in case of sudden interference, greatly improving the reliability and transmission distance.
This RF module has data encryption and compression capabilities. The transmit data in the air is random but with rigorous encryption and decryption, which makes data interception meaningless.The data compression function has the probability to reduce the transmission time, reduce the probability of interference, and improve the reliability and transmission efficiency. The module can operate in the low voltage range of 1.8-3.6V to meet the needs of battery power supply. The module communicates with MCU via SPI port, can simulate SPI interface through standard SPI interface or I/O interface of MCU, consumes only tens of microamperes of current in power saving mode, and is very suitable for ultra-low power system and sensor application.
Features
● Transmission distance: 2100m
● Multiple baud rates can be configured at will
● Receiving Sensitivity: -126dBm
● Low Receive Power Consumption (Minimum 30uA)
● Control the output power through MCU
● Sleeping current only 1.7uA
● Wake on radio function
● 256 channels frequency: 433.92M, 470M, etc.
● Double 512Bytes Ring Buffer
● Multiple power levels (maximum 50mW)
● Encryption algorithm + FEC error correction function
● Configurable 65536 address (easy to group)
● Supports voltage reading
Applications
● Wireless meter reading
● Wireless Sensing
● Intelligent Home
● Industrial Remote Control,Telemetry
● Intelligent Building
● High Tension Line Monitoring
● Environmental Monitoring
● Highway
● Small weather stations
● Automatic Data Acquisition
● Consumer Electronics
● Street light control
● Other wireless transmission applications
Technical Parameter
| Pin | Name | I/O | Description |
| 1 | GND |
P |
Grounding, common ground with the system |
| 2 |
DDATA |
I/O |
Standard data input and output interface, can be configured as standard IO port |
| 3 |
DCLK |
I/O |
Wireless mode: clock output, can be configured as standard IO port for use |
| 4 |
SYSCLK |
I/O |
Default reference frequency output, can be configured as standard IO, internal 56K Ω pull-up resistance |
| 5 |
SEL |
Input |
Serial peripheral interface select pin |
| 6 |
MISO |
Output |
DI/OSerial peripheral interface data output |
| 7 | MOSI |
Input |
DI/OSerial peripheral interface data input |
| 8 |
IRQ |
I/O |
Default to transmit and receive external interrupt, configurable standard IO, internal 65K Ω pull-up resistor |
| 9 |
ANT_SEL |
I/O |
Diversity antenna output selection, can be configured as standard IO, internal 65K Ω pull-up resistance |
