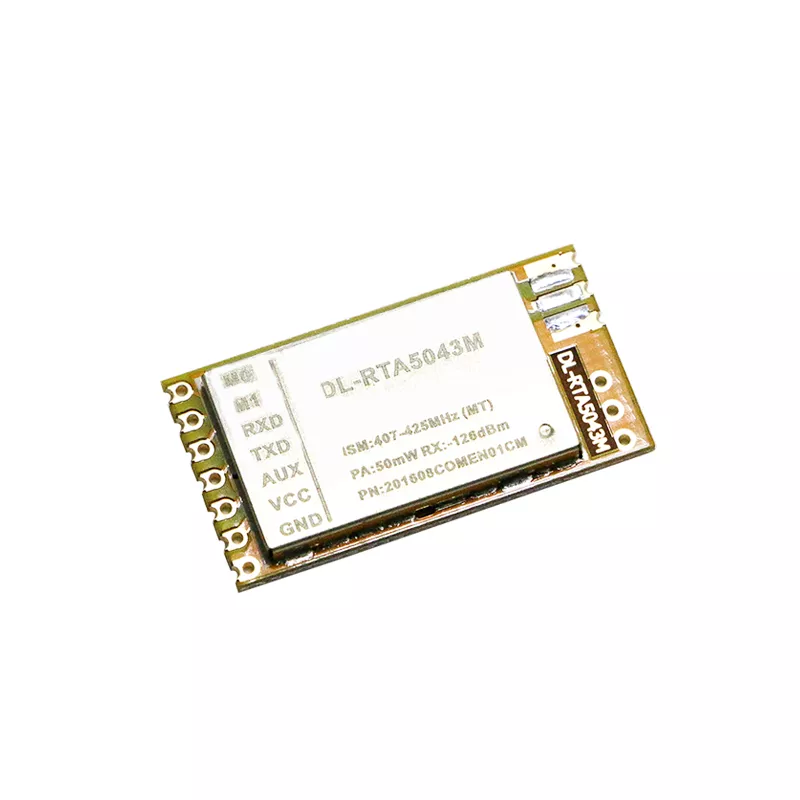

DL-RTA5043M, 433MHz UART Serial Module with AXSEM AX5043 Chip
-
DL-RTA5043M - 433Mhz
- AX5043
- -20~+20dBm
- 2.1~5.5V
- -121dBm
- 1800m
- 18*33*2mm
UART Serial Communication Transparent Transmission RF Module with AXSEM AX5043 Chip
DL-RTA5043M is a 50mW narrowband transmission (power centralized) wireless data transmission module based on AX5043 RF chip from Swiss AXSEM. It works in 407-450MHz ISM band and uses serial port for data transmission, which lowers the threshold of wireless application.
Narrow-band transmission has the advantages of concentrated power density, long transmission distance and strong anti-jamming ability, and greatly increases transmission distance compared with other similar products at the same power. This module can configure FEC forward error correction algorithm, which has high encoding efficiency and strong error correction ability. It can actively correct the jammed packets in case of sudden interference, greatly improving the reliability and transmission distance.
This UART serial module has data encryption and compression capabilities. The transmit data in the air is random but with rigorous encryption and decryption, which makes data interception meaningless.
The data compression function has the probability to reduce the transmission time, reduce the probability of interference, and improve the reliability and transmission efficiency. This RF module can operate in a wide voltage range of 2.1 - 5.5V to meet the needs of battery power supply. The module has four working modes, can switch freely during operation, consumes only tens of microamperes of current in power-saving mode, and is ideal for ultra-low power system and sensor applications.
Features:
● Transmission distance: 2100m
● Multiple baud rates can be configured at will
● Receiving Sensitivity: -126dBm
● Low Receive Power Consumption (Min. 2uA)
● Four working modes
● Sleeping current only 1.7uA
● Wake on radio function
● 256 channels frequency: 407 - 450M
● Double 512Bytes Ring Buffer
● Multiple power levels (maximum 50mW)
● Encryption algorithm + FEC error correction function
● Configurable 65536 address (easy to group)
● Built-in watchdog, never crashes
Technical Parameter
| Pin number | Name | Pin direction | Pin usage |
| 1 | M0 | Input (very weak pull-up) | Cooperate with M1 to determine the 4 working modes of the module, which can not be suspended |
| 2 | M1 | Input (very weak pull-up) | Cooperate with M0 to determine 4 working modes of the module |
| 3 | GPIO_0 | Enter | TTL serial input, connect to external TXD output pin. Can be configured as open-drain or pull-up, input, see parameter settings for details |
| 4 | AUX | Output |
TTL serial output, connect to external RXD input pin. Can be configured as open-drain or push-pull, output, see parameter settings for details |
| 5 | NIRQ |
Output |
Low level, configured as push-pull output, see parameter settings for details |
| 6 | VCC | Positive reference of module power supply, voltage range: 2.1V-5.5VDC | |
| 7 | GND | Module ground |
