DL-RTM300-868, 868MHz FSK Transceiver Module with CMT2300 Chip,

433/868/915MHz FSK Two-way Wireless Transceiver Module with CMT2300 Chip

Module introduction

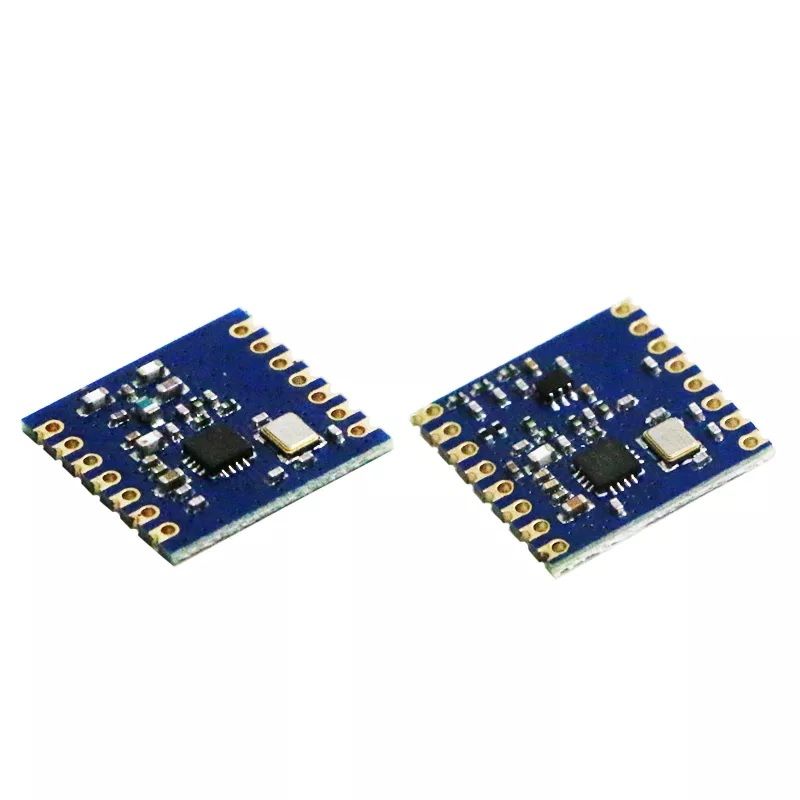

DL-RTM300&300H was designed base on CMOSTEK CMT2300A wireless transceiver chip, it is Pin to Pin with HopeRF's RFM300H/RFM300 RF modules. It is a compact, low-power, long-distance wireless transceiver module. It is mainly set to 433MHz, 868MHz, 915MHz and other special frequency bands of the national networks. The sensitivity can reach -120dbm, the maximum transmission rate can reach 300Kbps. The module integrates all RF-related functions. Users do not need to have a deep understanding of RF circuit design; they can use this module to easily develop wireless products with stable performance and high reliability, shortening the product development cycle.

Applications

● ISM band data communication

● Intelligent buildings

● Smart home Security

● AMR (Automatic Message Recording)

● Wireless remote control

● Building automation

● Wireless sensor network

● Energy control and management

● RKE (Remote Keyless Entry)

● Thermal energy collection, meter measurement

Features & Brief Introduction

● Compact size, adopt SMD stamp side half hole package mode

● Working frequency: 433Mhz, 868Mhz, 915 MHz；

● Transmission distance: 1.8KM in open ground；

● Support FSK, GFSK, OOK modulation, can be controlled programmatically

● Baud Rate: 1.2Kbps～300Kbps, can be configured programmatically

● Max. output power: 20dBm, -120dBm@1.2Kbps high receiving sensitivities

● Low power consumption, receiving current<7mA；

● Supplying Voltage: 1.9～3.6V DC

● Size: 16*16*1.8mm

Technical Parameter

Recommended working range

DC characteristic

Transmitter AC characteristic

Receiver AC characteristic
