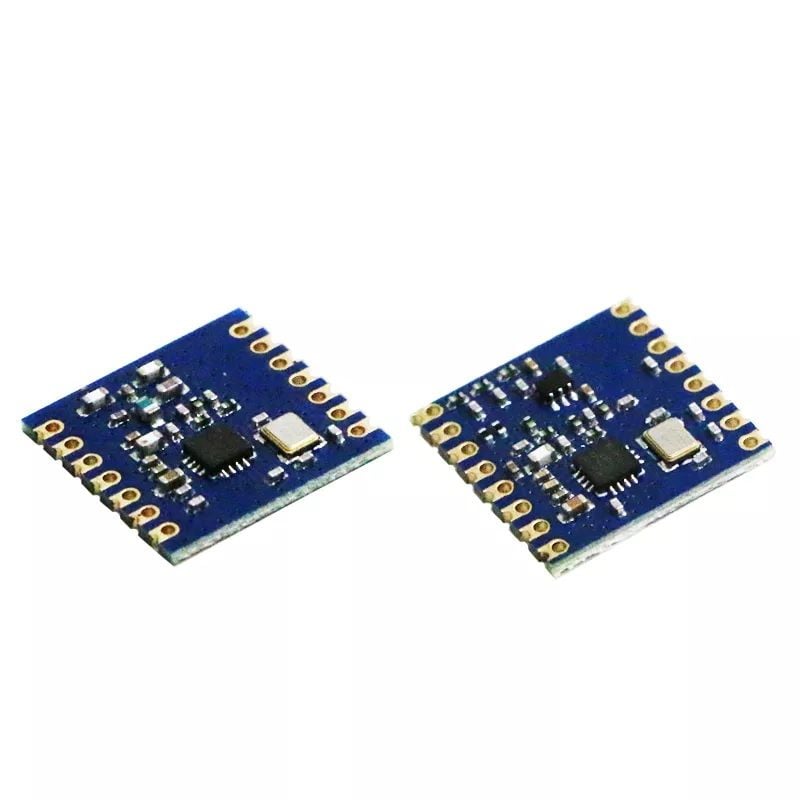

DL-RTM300H-433, 433MHz FSK Transceiver Module with CMT2300 Chip
- DL-RTM300H-433
- 433Mhz
- CTM2300A
10dBm- -0.3~3.6V
-120dBm- 1000m
- 16*16*2mm
433/868/915MHz FSK Two-way Wireless Transceiver Module with CMT2300 Chip
Module introduction
DL-RTM300&300H was designed base on CMOSTEK CMT2300A wireless transceiver chip, it is Pin to Pin with HopeRF's RFM300H/RFM300 RF modules. It is a compact, low-power, long-distance wireless transceiver module. It is mainly set to 433MHz, 868MHz, 915MHz and other special frequency bands of the national networks. The sensitivity can reach -120dbm, the maximum transmission rate can reach 300Kbps. The module integrates all RF-related functions. Users do not need to have a deep understanding of RF circuit design; they can use this module to easily develop wireless products with stable performance and high reliability, shortening the product development cycle.
Applications
● ISM band data communication
● Intelligent buildings
● Smart home Security
● AMR (Automatic Message Recording)
● Wireless remote control
● Building automation
● Wireless sensor network
● Energy control and management
● RKE (Remote Keyless Entry)
● Thermal energy collection, meter measurement
Features & Brief Introduction
● Compact size, adopt SMD stamp side half hole package mode
● Working frequency: 433Mhz, 868Mhz, 915 MHz;
● Transmission distance: 1.8KM in open ground;
● Support FSK, GFSK, OOK modulation, can be controlled programmatically
● Baud Rate: 1.2Kbps~300Kbps, can be configured programmatically
● Max. output power: 20dBm, -120dBm@1.2Kbps high receiving sensitivities
● Low power consumption, receiving current<7mA;
● Supplying Voltage: 1.9~3.6V DC
● Size: 16*16*1.8mm
Technical Parameter
Recommended working range
DC characteristic
Transmitter AC characteristic
Receiver AC characteristic
Number |
Definition |
Type |
Function |
1 |
ANT |
Al/AO |
RF signal input/output |
2 |
GND |
G |
Ground |
3 |
TX-ANT |
l/O |
Tx Antenna select input pin, when 300H is TX state, TX_ANT should be = 0, RX_ANT should be = 1 |
4 |
RX-ANT |
l/O |
Rx Antenna select input pin, when 300H is RX state, RX_ANT should be = 0, TX_ANT should be = 1 |
5 |
3.3V(VDD) |
Pl |
Power supply input,1.8-3.6V |
6 |
GPlO1 |
l/O |
General Purpose Digital I/O that may be configured through the registers to perform various functions |
7 |
GPlO2 |
l/O |
General Purpose Digital I/O that may be configured through the registers to perform various functions |
8 |
GPlO3 |
l/O |
General Purpose Digital I/O that may be configured through the registers to perform various functions |
9 |
GND |
G |
Ground |
10 |
SDlO |
l/O |
SPI Data input and output |
11 |
CSB |
l |
SPI Chip select input, active low |
12 |
SCK |
l |
SPI Clock input |
13 |
FCSB |
l |
SPI FIFO select input, active low |
14 |
NC |
No Connect |
|
15 |
NC |
No Connect |
|
16 |
GND |
G |
Ground |
