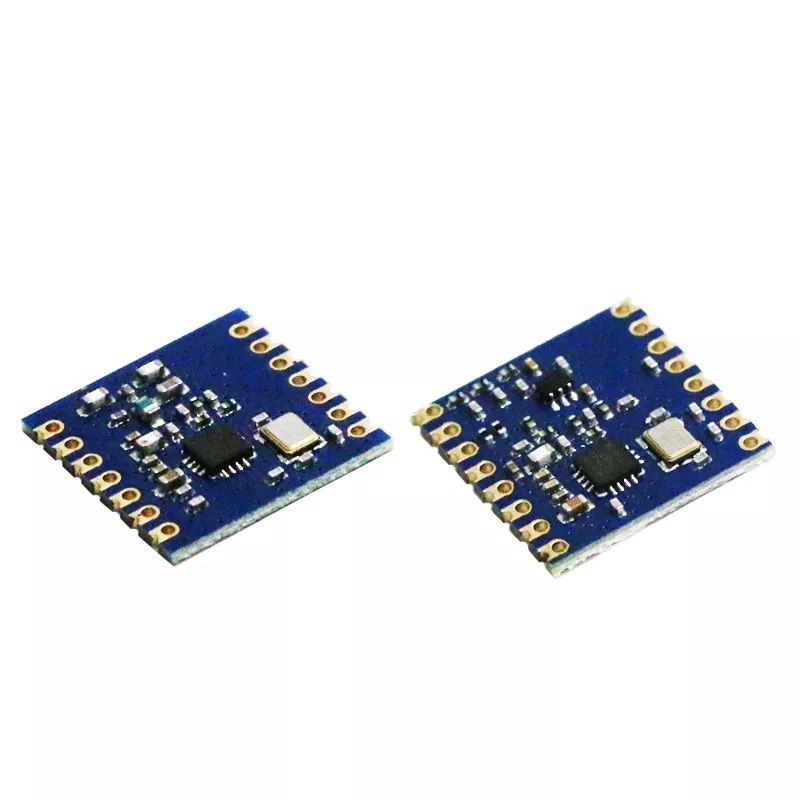

DL-RTM300H-868, 868MHz FSK Transceiver Module with CMT2300 Chip,

Kategori

868MHz Modül

Marka

DreamLNK

Stok Kodu

DL-RTM300H-868

DL-RTM300H-868, 868MHz FSK Transceiver Module with CMT2300 Chip,

Teklif İsteyiniz

Yorum
Yaz

868 Mhz FSK Transceiver Module with CMOSTEK CMT2300 chip, Pin to Pin with HopeRF's RFM300H/RFM300 RF modules

Model:DL-RTM300H-868
Frequency:868Mhz
Chip:CMT2300A
Voltage:-0.3~3.6V
Sensitivity:-120dBm
Distance:1000m
Size:16*16*2mm

ÜRÜN BİLGİSİ

433/868/915MHz FSK Two-way Wireless Transceiver Module with CMT2300 Chip

Module introduction

DL-RTM300&300H was designed base on CMOSTEK CMT2300A wireless transceiver chip, it is Pin to Pin with HopeRF's RFM300H/RFM300 RF modules. It is a compact, low-power, long-distance wireless transceiver module. It is mainly set to 433MHz, 868MHz, 915MHz and other special frequency bands of the national networks. The sensitivity can reach -120dbm, the maximum transmission rate can reach 300Kbps. The module integrates all RF-related functions. Users do not need to have a deep understanding of RF circuit design; they can use this module to easily develop wireless products with stable performance and high reliability, shortening the product development cycle.

Applications

● ISM band data communication

● Intelligent buildings

● Smart home Security

● AMR (Automatic Message Recording)

● Wireless remote control

● Building automation

● Wireless sensor network

● Energy control and management

● RKE (Remote Keyless Entry)

● Thermal energy collection, meter measurement

Features & Brief Introduction

● Compact size, adopt SMD stamp side half hole package mode

● Working frequency: 433Mhz, 868Mhz, 915 MHz；

● Transmission distance: 1.8KM in open ground；

● Support FSK, GFSK, OOK modulation, can be controlled programmatically

● Baud Rate: 1.2Kbps～300Kbps, can be configured programmatically

● Max. output power: 20dBm, -120dBm@1.2Kbps high receiving sensitivities

● Low power consumption, receiving current<7mA；

● Supplying Voltage: 1.9～3.6V DC

● Size: 16*16*1.8mm

Technical Parameter

Parameter	Minimum	Maximum	Unit
Positive Power Supply	-0.3	+3.6	V
Voltage On Digital Control Inputs	-0.3	VDD+0.3	V
Voltage On Analog Inputs	-0.3	VDD+0.3	V
RX Input Power	-	+10	dBm
Storage Temperature	-55	+125	℃
Soldering Temperature（10s）	-	+255	℃
ESD Rating（Human Boy Model）	-2	2	KV

Recommended working range

Parameter	Minimum	Maximum	Unit
Positive Power Supply	+1.8	+3.6	V
Working Temperature	-20	+70	℃
Supply Voltage Slew Rate	1	-	mV/us

DC characteristic

Parameter	Conditions	Minimum	Typical	Maximum	Unit
RTM300H TX WorkingCurrent	433MHz band.Pout=+20dBm 868MHz band.Pout=+20dBm 915MHz band.Pout=+20dBm	- - -	75 80 85	95 90 95	mA
RTM300 TX Working Current	433MHz band，Pout=+20dBm	-	75	95	mA
RTM300H/RTM300 RX Working Current	433MHz band， 868MHz band， 915MHz band，	- - -	7 7.5 7.5	10 10.5 10.5	mA
RTM300H/RTM300 Sleep Current	All band	-	-	1	uA

Transmitter AC characteristic

Parameter	Conditions	Minimum	Typical	Maximum	Unit
TX Frequency Range Programmable	433MHz band. 868MHz band. 915MHz band.	413 848 895	- - -	453 888 935	MHz
RTM300H Output Power	433/868/915MHz band	-	+20	-	dBm
RTM300 Output Power	433MHz band	-	+20	-	dBm
Symbol Rate,FSK Mode	programmable	0.1	-	300	kbps
Symbol Rate,OOK Mode	programmable	0.1	-	40	kbps
Frequency Deviation,FSK	programmable	1	-	200	KHz
Frequency Resolution		-	24.8	-	Hz

Receiver AC characteristic

Parameter	Conditions	Minimum	Typical	Maximum	Unit
PX Frequence Range Programmable	433MHz band. 868MHz band. 915MHz band.	413 848 895	- - -	453 888 935	MHz
RX Sensitivity OOK ModeSR=1.2kbps,	433MHz 868MHz 915MHz	- - -	-120 -118 -118	- - -	dBm
RX Sensitivity FSK ModeFoev=19.2kHz,SR =1.2kbps,	433MHz 868MHz 915MHz	- - -	-118 -116 -116	- - -	dBm
Receiver Bandwidth		50		500	KHz
Blocking Immunity	+/-1MHz offset +/-2MHz offset +/-10MHz offset	- - -	52 74 75	- - -	dB
Image Rejection Ratio	lF=280KHz	-	35	-	dB

YORUMLAR

Bu ürüne ilk yorumu siz yapın!

Yorum Yaz

TAKSİT SEÇENEKLERİ

PIN DEFINITION

Number	Definition	Type	Function
1	ANT	Al/AO	RF signal input/output
2	GND	G	Ground
3	TX-ANT	l/O	Tx Antenna select input pin, when 300H is TX state, TX_ANT should be = 0, RX_ANT should be = 1
4	RX-ANT	l/O	Rx Antenna select input pin, when 300H is RX state, RX_ANT should be = 0, TX_ANT should be = 1
5	3.3V(VDD)	Pl	Power supply input,1.8-3.6V
6	GPlO1	l/O	General Purpose Digital I/O that may be configured through the registers to perform various functions
7	GPlO2	l/O	General Purpose Digital I/O that may be configured through the registers to perform various functions
8	GPlO3	l/O	General Purpose Digital I/O that may be configured through the registers to perform various functions
9	GND	G	Ground
10	SDlO	l/O	SPI Data input and output
11	CSB	l	SPI Chip select input, active low
12	SCK	l	SPI Clock input
13	FCSB	l	SPI FIFO select input, active low
14	NC		No Connect
15	NC		No Connect
16	GND	G	Ground
