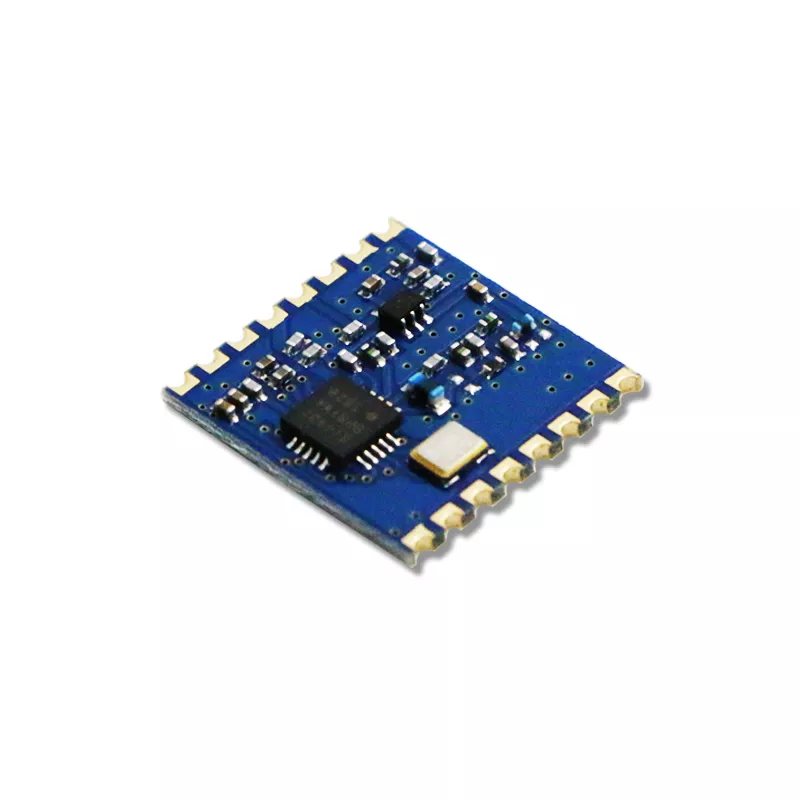

DL-RTS4432, 433MHz FSK Wireless Transceiver Module with Silicon Labs si4432 Chip

High-performance FSK Transceiver Module with Si4432 chip

Module introduction

DL-RTS4432 was designed base on Silicon Labs' Si4432 wireless transceiver chip. It is a compact, low-power, long-distance wireless transceiver module. The chip launched by Silicon Labs is mainly set to 315MHz, 433MHz, 868MHz, 915MHz and other special frequency bands of the national networks. The sensitivity can reach -121dbm, the maximum transmission rate can reach 128Kbps, and the output power can range from +1dbm to + 20dbm through the register configuration.

This wireless transceiver module integrates all RF-related functions. Users do not need to have a deep understanding of RF circuit design; they can use this module to easily develop wireless products with stable performance and high reliability, shortening the product development cycle.

DL-RTS4432 RF module adopts single-chip architecture, and the periphery adopts high-precision crystal, high-Q Murata inductor, small volume but high-capacity filter capacitor. All SMD components are used, and the interface is encapsulated with standard pitch stamps, which is conducive to the development of compact systems and the application of mass placement.

Features

● 1200m transmission distance (1200bps)

● Working frequency: 433.92m (other frequencies need to be customized)

● Operating voltage: 1.8V-3.6V

● Low current loss in SHUTDOWN mode

● Efficient 4 - line SPI interface

● Separate 64-byte RX FIFO and TX FIFO

● Support WOR wireless wake-up function for portable devices

Applications

● Wireless sensor;

● Home automation;

● Automated data collection;

● Industrial remote control, telemetry;

● Data monitoring and transmission;

● Home Appliance Control;

● Security, alarm control;

Technical Parameter

DC characteristics

DC characteristics of the Module

RF characteristics (Unless otherwise stated, the temperature is 25  ℃, and VCC is 3.3V)
