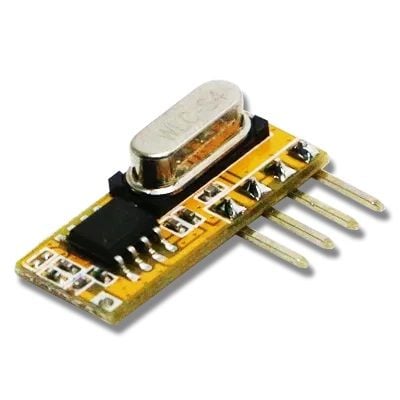

DL-RXC2016BH, 433Mhz Superheterodyne Front-end RF Receiver Module
DL-RXC2016BH- 433MHz
- RX Chip
- -25dBm
- 2.0~5.5V
-110~112dBm- 300m
- 22*9*5mm
Micro-power High Sensitive Superheterodyne 433Mhz RF Receiver Module
DL-RXC2016BH is a micro-power, highly sensitive, superheterodyne RF receiving module. It is a high performance, cost-effective receiving module with simple peripheral circuit. It has high stability, and strong anti-interference capability. The typical frequencies of applications ranging from 315 to 440 MHz, and the peripheral components are the least of the similar superheterodyne reception schemes.
This RF receiving module is compliance with European and American radio security regulations, can be directly applied to your wireless products, and a variety of embedded applications, to avoid tedious high-frequency performance debugging, effectively shorten the development cycle. DL-RXC2016BH is a real "high frequency antenna AM signal input, digital signal output" receiving module. All RF and IF tuning is done automatically on the chip, which eliminates the manual adjustment process in the development and production, will reduce your R&D costs and enhance the product competitiveness.
Features
● Standard COMS interface control and decoding data output
● Complete monolithic UHF receiver, frequency range 425-525 MHz
● Working frequency: 433.92 MHz, 315 MHz
● Receive sensitivity: -112dBm
● Transmission rate: 1.0~5 kbps
● Ultra-wide working voltage range: 2.0V-5.5V
Technical Parameter
DC characteristics
RF characteristics (Unless otherwise stated, the temperature is 25 ℃, and VCC is 3.3V)
The DL-RXS531 module has four pins, which are defined in the following table
