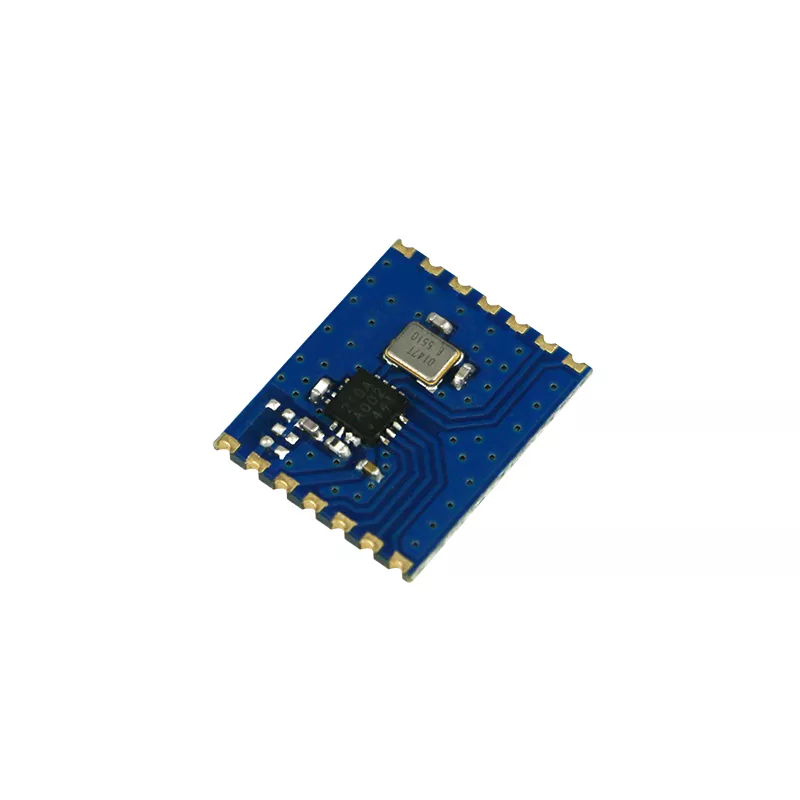

DL-RXC2219A, 868MHz High-performance FSK Wireless Receiver Module cmt2219

High-performance FSK Wireless Receiver Module with cmt2219 chip

Module introduction

The DL-RXC2219A/B is an ultra-low power, high performance, OOK and (G)FSK receiver 868 MHz wireless applications. includes a complete line of transmitters, receivers and transceivers. All features can be configured either by off-line EEPROM programming or on-line registers writing. The configuration file to be written, into the registers is generated by the smart RF PDK.

The DL-RXC2219A/B operates from a supply voltage of 1.8 V to 3.6V, when it is always on, it consumes only 5.7 mA current while achieving -109 dBm receiving sensitivity (FSK, 9.6 ksps symbol rate, 868.35 MHz), and only 60 nA sleep current for superior battery life. The device supports packet handling, 32-byte FIFO, Manchester decoding and data de-whitening for the received data processing. Besides the demodulated data and the sync clock, the device can also send out the power-on reset, the system clock, as well as 2 configurable interrupts for the external device. DL-RXC2219A/B receiver together with the DL-TXC2119A/B transmitter enables a powerful RF link.

Features

● Embedded EEPROM, RoHS Compliant

● Very Easy Development with RFPDK. All Features Programmable

● Frequency: 868 MHz FSK, GFSK and OOK Demodulation Symbol Rate: 0.1 to 100 ksps

● Sensitivity: -109 dBm @ 9.6 ksps, FSK, 868M Hz

● 4-wire SPI Interface

● Direct, Buffer and Packet Mode Supported

● Configurable Data Handler and 32-Byte FIFO

● Manchester Decoding and Data De-Whitening

● Supply Voltage: 1.8 to 3.6 V

● Low Power Consumption: 5.7 mA Low Sleep Current

● 60 nA when Sleep Timer Off

● 440 nA when Sleep Timer on

● Module Size:15*12.5*1.8mm

Applications

● Low-Cost Consumer Electronics Applications

● Home and Building Automation

● Infrared Receiver Replacements

● Industrial Monitoring and Controls

● Remote Automated Meter Reading

● Remote Lighting Control System

● Wireless Alarm and Security Systems

● Remote Keyless Entry (RKE)

Technical Parameter

DC characteristics
