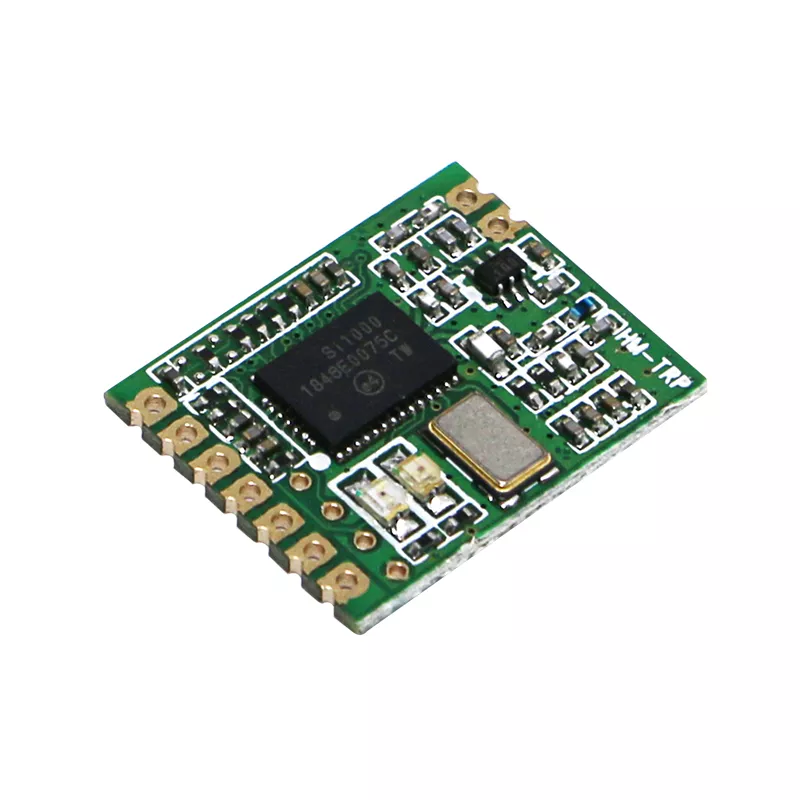

DL-TRP868, 868MHz UART Serial Module with AXSEM AX5043 Chip

100mW UART Wireless Transparent Transmission Module

DL-TRP Series RF Modules are high performance FSK wireless transparent transceiver modules with low-cost. They can work in 433 / 470 / 868 / 915MHz ISM band, compact in size, but large power, high sensitivity, long transmission distance, and high communication rate; they can automatically complete communication protocol conversion and data receive control within the module. The module provides UART serial data interface, which enables wireless data transmission by providing only serial data. Users can also flexibly configure the serial rate, operating frequency, transmission power, communication rate, modulation frequency offset, receiving bandwidth and other parameters of the module according to their own needs. DL-TRP series modules can be widely used in all kinds of wireless data transmission fields, and are ideal for designing wireless data transmission products.

Features:

● Low cost, high performance, and high reliability;

● FSK modulation, half duplex communication, strong anti-interference ability

● 433 / 470 / 868 / 915MHz ISM frequency band, no need to apply for frequency point

● The maximum output power is 100mW (20dBm), and the output power can be adjusted nonlinearly in the range of 1-20dbm;

● Receiving sensitivity: - 117dbm;

● Transmission working current: 100mA@20dBm, 40mA@14dBm

● Receiving working current: 25mA

● Power consumption in standby mode: 1uA

● Standard TTL level UART serial interface, can be extended to RS232 interface or other interfaces

● The working frequency can be set, frequency division multiplexing for multiple modules available, without mutual interference

● The modulation frequency offset and receiving bandwidth are optional, which can be configured by yourself through software

● Communication protocol conversion and RF transceiver switching are completed automatically, and users do not need to intervene, which is simple and easy to use

● The communication rate is 1.2kbps-115.2kbps, which can be configured by software

● Provide enable control signal, and the duty cycle is controlled by yourself to meet different requirements

● RSSI function, LED indication function

● Long transmission distance: more than 1km in open area (without interference)

● Compact size: 16*20*2mm, SMD package, easy to install

● No debugging needed when production

Limit value

Specification

DC characteristics

RF characteristics (Unless otherwise stated, the temperature is 25 ℃, and VCC is 3.3V)
