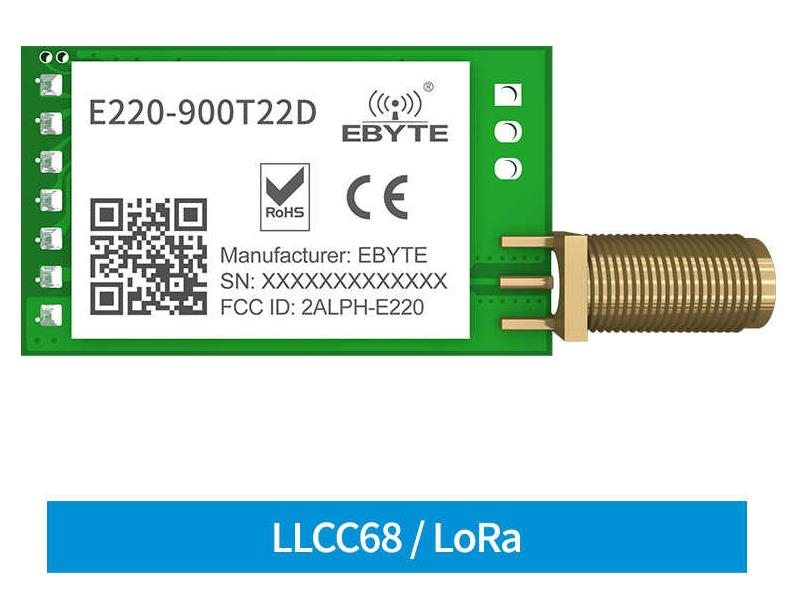

E220-900T22D, 868MHz LoRa Modül , LLCC68, 22dBm, 5km, UART, DIP

Fiyat

12,00 USD + KDV

412,74 TL + KDV

SEPETE EKLE HEMEN AL

Aynı Gün Kargo

Sınırlı Stok

Yorum
Yaz

EBYTE E220-900T22D adopts a new generation of LoRa spread spectrum technology and a wireless serial port module (UART) designed based on the LLCC68 chip solution. Works in the (850.125~930.125MHz) frequency band (default 873.125MHz), power 22dBm. Communication distance 5km. TTL level output, compatible with 3.3V and 5V IO port voltage.

Type: Drive IC

Model Number: E220-900T22D

Supply Voltage: 3-5.5V

Dissipation Power: 22dBm

is_customized: Yes

Operating Temperature: -40-+85℃

Package: DIP

IC: LLCC68

Weight: 5g

Working Frequency: 850.125~930.125MHz

Distance: 5km

Size: 21*36mm

Communication Interface: UART

Antenna Type: SMA-K

ÜRÜN BİLGİSİ

Main Parameter	Min.	Typ.	Max.	Unit	Remark
Operating voltage	2.3	3.3	5.5	V	≥3.3V ensures output power
Communication level	-	3.3	-	V	For 5V TTL, it may be burning down
TX current	-	110	-	mA	Instant power consumption @22dBm
RX current	-	16.8	-	mA	5V Voltage
Sleep current	-	5	-	uA	Software shutdown
Operating Temperature	-40	-	+85 ℃	Industrial grade
Operating frequency	850.125	-	930.125	MHz	Support ISM band
Tx power	21.5	22	22.5	dBm	-
Receiving sensitivity	-146	-147	-148	dBm	Air data rate 2.4kbps
Air data rate	2.4k	2.4k	62.5k	bps	To control via user’s program

Main Parameter	Performance	Remark
Distance for reference	5km	Test condition：clear and open area, antenna gain: 5dBi，antenna height: 2.5m，air data rate:2.4kbps
TX length	200 Btye	Can be configured via command as 32/64/128/200 bytes per packet to transmit
Buffer	400 Btye	-
Modulation	LoRa	New generation LoRa modulation technology
Communication interface	UART Serial Port	TTL Level
Package	DIP	-
Size	21*36 mm	-
Antenna	SMA-K	50 ohm impedance
