DL-24D

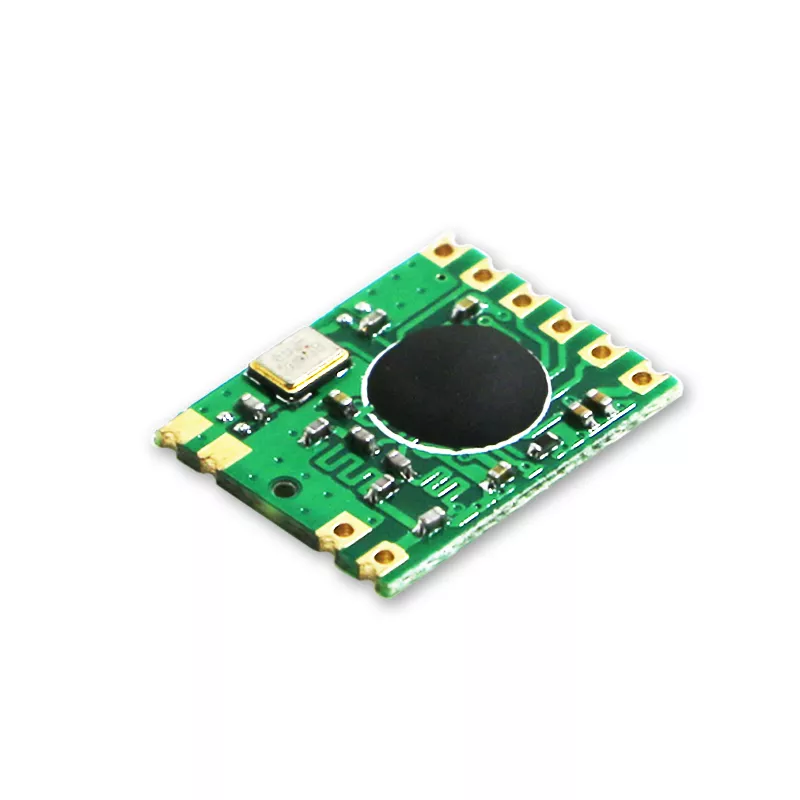

DL-24D, 2.4G Transceiver Module with CC2500 Chip From TI

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
2.4G RF Module designed base on NRF24L01 wireless transceiver chip

  • DL-24D
  • 2.4~2.5GHz
  • CC2500
  • -30~1dBm
  • 1.8~3.6V

  • -98dBm
  • 100m
  • 17.6*12*2mm

High-performance 2.4G Transceiver Module with CC2500 Chip from TI


Module introduction

Designed base on TI-Chipcon's CC2500 wireless transceiver chip, DL-24D is a compact, cost-effective, remote wireless transceiver module, which is widely used in smart home, toy aeromodelling and close-range data transmission control fields. Sensitivity up to -98dbm, maximum transfer rate up to 500Kbps, output power through register configuration range from -30dbm to +1dbm.


This RF module integrates all radio frequency related functions, you can easily develop wireless products with stable performance and high reliability directly, which will extremely shorten the development cycle without in-depth understanding of RF circuit design. SMD and DIP interface modes are adopted, but manual welding is required due to different thermal expansion coefficient of the black glue and the binding wire inside.The small size of the module is convenient for portable products, and it can well meet the requirements of low-power system by combining with low-power MCU.


Applications

● Transmission distance: 100m in open air is more than (250Kbps);

● Operating frequency: 2400-2483mhz

● Operating voltage: 1.8V-3.6V

● Programmable carrier detection, digital RSSI output

● Excellent selectivity and out-of-band isolation

● Gold plate binding process, high cost performance

● Four-line SPI interface, strong versatility;


Typical application

● Wireless game controller

● Wireless keyboard and mouse

● Consumer electronics and toy model airplanes

● Wireless voice/audio transmission

● Data monitoring transmission

● Smart home control

● Remote control that supports radio frequency (RF) technology


Technical Parameter

DC characteristics

Description Min. Max. Unit
Power supply voltage 1.8 3.6 V

Working current

RX <17mA TX=22mA@0dbm mA

Stand-by current


<1uA uA
voltage of I/O Port Vss-0.3 Vdd+0.3 V
Working temperature -20 +75

Radio frequency characteristics (Unless otherwise stated, temperature 25 ℃, VCC 3.3V)

No Description

Parameter Range

Min.-Typ.-Max.

Unit
1 Applied Frequency Range 2400,—,2483.5 MHz
2 Frequency Interval —,100K,— Hz
3 Transmit Power -30,—,1 dBm
4

Reception sensitivity

—,-98,— dBm
5 Modulation mode  GFSK,2-FSK,OOK MSK
6 Transmission rate 1.2,—,500 Kbps
7 Harmonic power -48,—,-45 dBm
8 Communication distance 80,—,100 M
9 Sensitivity at a rate of 2.4K —,-104,— dBm
10 Rate in OOK modulation mode —,,100 Kbps
11 Standby Power Consumption —,—,0.9 mA
12 Crystal Precision *3225/ 2*6  —,10, PPM




Bu ürüne ilk yorumu siz yapın!
Pin No Pin’s Name Description
1 VCC Power Supply, DC1.8-3.6V
2 MOSI SPI Data input,MOSI
3 SCLK SPI CLOCK signal
4 MISO SPI data output, MISO
5 CSN CSN=0 valid
6 GND Grounding, common ground with the system
7 ANT Antenna interface, the standard 50 Ω antenna
