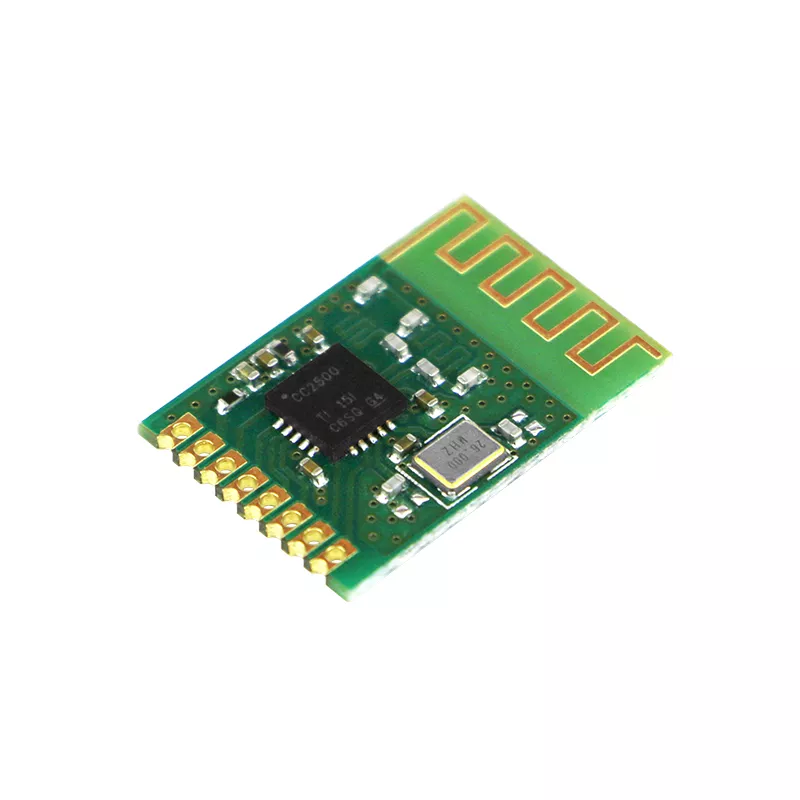

DL-24D8A-C, 2.4G Wireless Transceiver Module with CC2500 Chip Design
- DL-24D8A-C
- 2400~2483.5MHz
- CC2500
- -30~1dBm
- 1.9~3.6V
-105dBm- 100m
- 17.1*12.2*1.57mm
2.4G Wireless Transceiver Module with CC2500 Chip Design
Designed base on TI-Chipcon's CC2500 wireless transceiver chip, this DL-24D8A-C is a high quality wireless transceiver module, which is widely used in smart home, toy aeromodelling and close-range data transmission control fields. Sensitivity up to -98dbm, maximum transfer rate up to 500Kbps, output power through register configuration ranges from -30dbm to +1dbm. The module is integrated with all RF related devices and has PCB onboard antenna, so excellent RF performance can be obtained without additional antenna configuration.
This module uses standard 8 PIN output. RSSI and low power mode can be set up effectively in the application to reduce the cost. You can easily develop wireless products with stable performance and high reliability directly, which will extremely shorten the development cycle without in-depth understanding of RF circuit design.
Remark: DL-24D8A-C is pin to pin with our DL-24TRGC RF module, but DL-24TRGC is a binding version 2.4G RF module base on CC2500 wafer, while DL-24D8A-C was based on CC2500RGPR chip design, which can be SMT directly when mass production.
Applications
● Logistics tracking, warehouse patrols, RFID (radio frequency identification);
● Replace 232, 485 for wireless data communication;
● Wireless data collection and control for industrial instruments and meters;
● Automatic AMR (Water, Electricity, Gas) meter reading system;
● Building and residential (smart home) control;
● Wireless remote control for electronic consumer products;
● Wireless Alarm, Security & Protection System;
● Wireless sensor network, etc.
Features
● The center frequency is 2433MHz, can work in the range of 2400~2483.5MHz
● The maximum output power is +1dBm, and the open transmission distance is more than 100m
● High reception sensitivity, up to -105dbm (@2.4Kbps)
● Support GFSK/OOK/2-FSK/ASK/MSK modulation mode, programmable control
● Communication rate 1.2~500Kbs, programmable configuration;
● Separate 64byte transmit/receive data buffer
● Separate 64-byte RX FIFO and TX FIFO
● Built-in CRC check to ensure reliable data transmission
● Carrier sense function; ● Digital RSSI output;
● Low power consumption, receiving current less than 15Ma, transmission current less than 25mA;
● With a low power consumption mode, the power consumption is less than 2 uA;
● Switching time of the standby and receive state under the WOR function can be pre-set, which can greatly save the power consumption;
● Integrated temperature sensor;
● Four-line SPI interface, strong versatility;
● Power supply: 1.8~3.6V DC.
DC Features
RF Features (unless otherwise stated, Temperature is 25℃, VCC =3.3V)
Pin No | Pin’s Name | Description |
1 | VCC | Supply voltage, DC 1.8-3.6V |
2 | MOSI | SPI data input,MOSI |
3 | SCLK | SPI CLOCK |
4 | MISO |
SPI data output, MISO |
5 | CSN |
CSN=0 Valid |
6 | GND | Grounding, common ground with the system |
7 | ANT | Antenna interface,standard 50Ω antenna |
Supplementary | PA control | GPIO0, GPIO2 Controls "Enable (EN) of the PA” |
