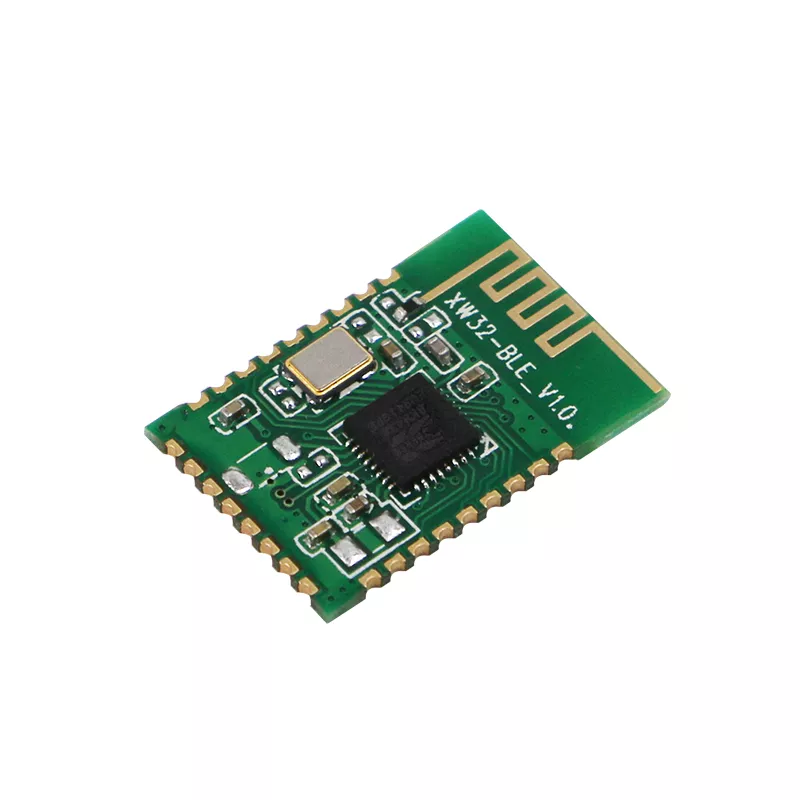

DL-32-BLE4.2, BLE4.2 Bluetooth Module with 2.4GHz Frequency
-
DL-32-BLE4.2 - 2.4GHz
- BLE4.0
3.8~-4.3dBm- 1.8~3.6V
-95dBm
10m- 18*12*2mm
Low-power BLE4.2 Bluetooth RF Transceiver Module
DL-32-BLE4.2 is a low-power Bluetooth 4.2 module. The module integrates a high-performance 2.4GHz RF transceiver, a feature-rich baseband processor, ARM968E-S MCU, and a variety of peripheral interfaces. It has a built-in 160KBytes Flash and 20KBytes RAM, can be edited into protocols to meet your customized applications. Provide you a complete hardware and software solutions, to shorten your product development cycle and save you cost.
Features
● Low-power Bluetooth 4.2 module with compact size
● Built-in 10bit high precision ADC
● Support UART/GPIO/I2C/PWM/ADC/SPI/JTAG and other interfaces
● Deep sleep current 3uA
● The serial port can be enabled with pins to switch the working state and sleep state.
● Support command switching between AT command mode and transparent transmission mode.
● Support AT command configuration parameters.
● Communication distance in open areas can reach 40m @ 0dBm transmit power.
● Each frame of data packet supports up to 20 bytes.
● Power supply range: 1.55~3.3V, 3.0 V power supply is recommended.
● Dimensions: 18mm*12mm*1.7mm
Application
● Industrial wireless control
● Wearable electronic products
● Health products
● Smart sockets and lights
● Bluetooth to serial products
● Wireless remote control
| 1Pin | Name | Pin direction |
| 1、3、4、9、18、26 | GND |
Grounding |
| 2 |
ANT |
External antenna when needed |
| 5 |
P31 |
General IO, ADC1 |
| 6 |
P32 |
General IO, ADC2 |
| 7 |
P14 |
General IO， PWM4 |
| 8 |
VCCBAT |
3.0V VCC; the output current of the external power supply is recommended to be above 60mA |
| 10 | RSTN |
Reset pin, active low |
| 11 |
P00/TXD1 |
General IO, UART_TXD1 and MCU communication interface |
| 12 |
P01/RXD1 |
General IO, UART_RXD1 and MCU communication interface |
| 13 |
P17 |
General IO, UART_RXD2 |
| 14 |
P16 |
General IO, UART_TXD2 |
| 15 |
P13 |
General IO,PWM3 |
| 16 |
P33 |
General IO,ADC3 |
| 17 |
P12 |
General IO,PWM2 |
| 19 | P10 | General IO,PWM0 |
| 20 | P07 | General IO，PWM5，SPI_NSS， JTAG_TMS |
| 21 | P06 | General IO，SPI_MISO，PWM4，JTAG_TCK |
| 22 | P05 | General IO，SPI_MOSI ，JTAG_TDO |
| 23 | P04 | General IO，SPI_SCK ，JTAG_TDI |
| 24 | P03 | General IO，I2C_SDA , JTAG_NTRST |
| 25 | P02 | General IO，I2C_SCL |
