DL-Si24R1-A, 2.4G High Performance Wireless Transceiver Module

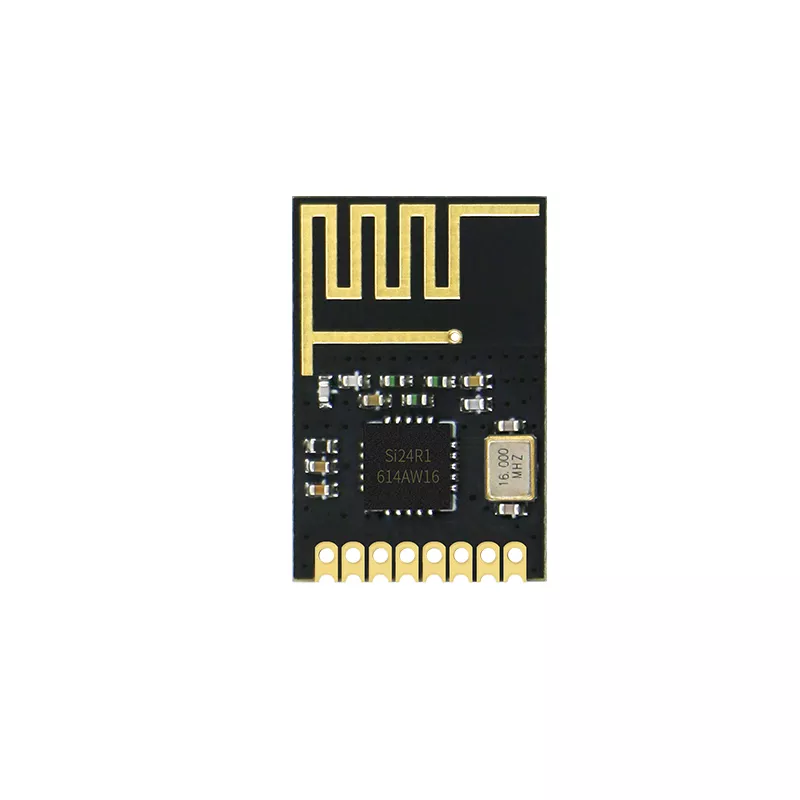

DL-Si24R1-A Wireless Module was designed based on Si24R1 RF transceiver chip from CSM-IC. It is an industrial grade 2.4G wireless module with PCB on board antenna, which is SMD packaging and compact in size. Its highest transmission rate can reach 2Mbps, while the maximum transmission power is about 7dbm.

This 2.4G Wireless Transceiver Module uses SPI interface, and adopts 16MHz crystal oscillator (high precision, high temperature stability), which is really an ideal product for various IoT applications, such as Smart Grid, Smart Home, Toy Aeromodelling, Medical Equipment, Sweeper Robot, Wireless Keyboard and Mouse, Wireless Remote Control, Active RFID, NFC, Wireless Sensor Nodes for Low power Ad Hoc Networks, etc.

This high-performance RF module has integrated all radiofrequency related functions, and you can easily develop wireless products with stable performance and high reliability directly, which will extremely shorten the development cycle without in-depth understanding of RF circuit design.

This wireless module adopts stamp edge and half hole interface design, which can not only meet your SMT application, but also can realize transverse and longitudinal welding through pin header arrangement.

Applications

● Wireless remote control for toy model airplanes

● Intelligent education answering device

● Pet finder and tracker

● Medical equipment and remote control

● Logistics tracking, warehouse inspection, RFID

● Wireless applications for Consumer electronics

● Low-power remote sensing system

● Wireless sensor networking application

Features & Brief Introduction

● High performance PCB antenna with transmission distance up to 100M;

● Modulation: GFSK/FSK;

● Air baud rate: 2Mbps/1Mbps/250Kbps;

● Transmission current: about 25mA, when the transmission power is 7dbm;

● Ultra-low power consumption: shutdown power consumption is about 1uA, while 15uA when standby;

● Working frequency: 2.4~2.525GHz, 126 channels in total, meet the special requirements of multipoint

    communication, grouping, frequency hopping, etc.;

● SPI communication interface, which can be directly connected to various MCUs;

● The recommended rate is 4Mbps, and the maximum rate can reach 10Mbps;

● The data packet can transmit 1~32Byte data each time;

● Wide power supply voltage range: 1.9-3.6V, supporting use at -40~+85℃;

● Gold plate PCB-ANT, high cost performance;

● Industrial grade 16MHz crystal oscillator, with extremely high precision, high temperature stability, suitable for mass applications;

Technical Parameter
